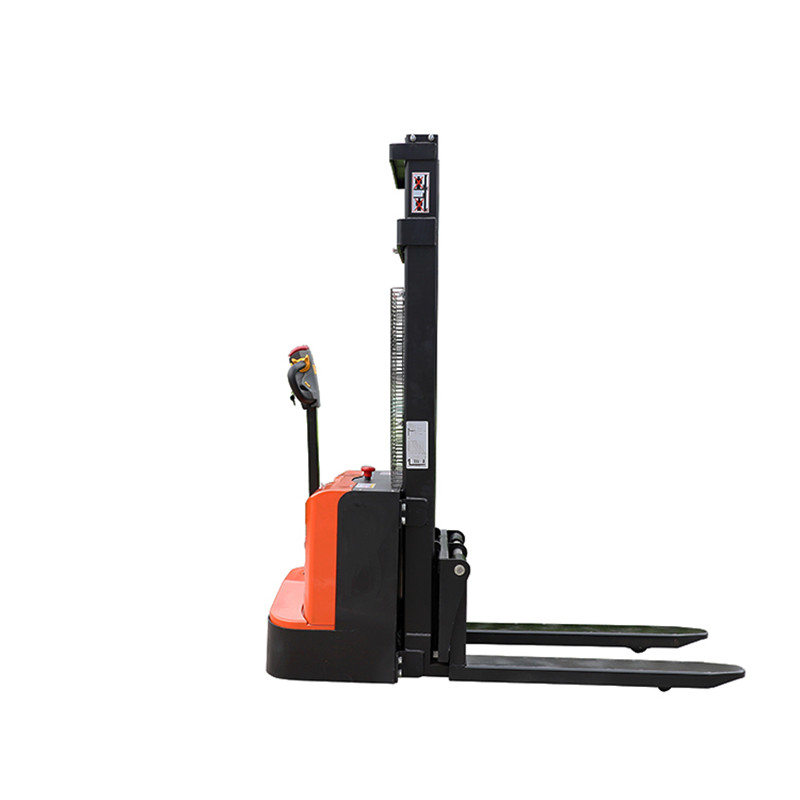

Walkie Full Electric Pallet Stacker

  • Load capacity: 1000kg-2000kg
  • Lifting height: 1.6m-3m
  • Power type: Electric
  • Driving type: Pedestrian

Product Description

The walkie full electric pallet stacker has various capacity and lifting height, which will meet your different requirements. Basic walking type, operator has very good overview. Middle drive type and straddle type are optional. Use large storage lead-acid battery ensure long battery lifting and working time. It equips CURTIS controller, MAHLE hydraulic motor.

Product Advantage

◆Virtually maintenance-free DC traction motor provides strong acceleration.

◆Built-in digital battery level gauge.

◆Long operation handle allows more light steering.

◆CURTIS controller, MAHLE hydraulic motor.

◆Automatic battery charger, battery voltage indicator.

◆Heavy duty tandem load wheels.

◆Key-operated On/Off control for safety and security.

◆Safety features include a horn and belly reverse button.

◆Simple structure, easy to maintain and repair.

Product Parameters

Model Unit CTQB

1016

CTQB

1020

CTQB

1025

CTQB

1030

CTQB

1516

CTQB

1520

CTQB

1525

CTQB

1530

CTQB

2016

CTQB

2020

Power type / Electric
Driving type / Pedestrian
Load capacity kg 1000 1500 2000
Self weight kg 350 370 390 410 370 390 410 430 380 400
Max. lift height mm 1600 2000 2500 3000 1600 2000 2500 3000 1600 2000
Min. lift height mm 90 90 90
Fork length mm 900/1000/1150 900/1000/1150 900/1000/1150
Width over forks fixed mm 550 550 550
adjustable mm 360-690 360-690 360-690
Overall length mm 1570/1670/1820 1570/1670/1820 1570/1670/1820
Overall width mm 950 950 950
Overall height closed mm 2080 1580 1850 2080 2080 1580 1850 2080 2080 1580
extended mm 2080 2580 3100 3580 2080 2580 3100 3580 2080 2580
Load center mm 400 400 400
Ground clearance mm 31 31 31
Min turning radius mm 1335/1420/1505 1335/1420/1505 1335/1420/1505
Front wheel size mm Φ80*93 Φ80*93 Φ80*93
Driving wheel size mm Φ210*70 Φ210*70 Φ210*70
Battery V/Ah 2*12/2*70 2*12/2*70 2*12/2*70
Travel speed (laden/unladen) Km/h 3.5/5 3.5/5 3.5/5
lift speed (laden/unladen) mm/s 90/120 90/120 90/120
Lowering speed (laden/unladen) mm/s 125/80 125/80 125/80
Grade ability(laden/unladen) ° 5/8 5/8 5/8
Lifting motor kw 1.6 1.6 1.6
Driving motor kw 0.75 0.75 0.75
Brake type / Electromagnetic Electromagnetic Electromagnetic
