Walkie Full Electric Pallet Truck

Load capacity: 1500kg
Lifting height: 200mm
Operation type: walkie
Power type: battery

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Parts Details

Request A Quote

Product Description

The walkie full-electric pallet truck is an economic walkie-electric pallet truck, with rated capacity up to 1500kg. The compact and light design is suitable for a variety of light duty and applications in warehouses or delivery applications on lorries with tail lifts.

In a retail environment, pallet trucks need to be small and easy to handle, not to disturb the customer flow.

The type EPT15 is your best choice when it comes to price efficient material handling equipment.

Product Advantage

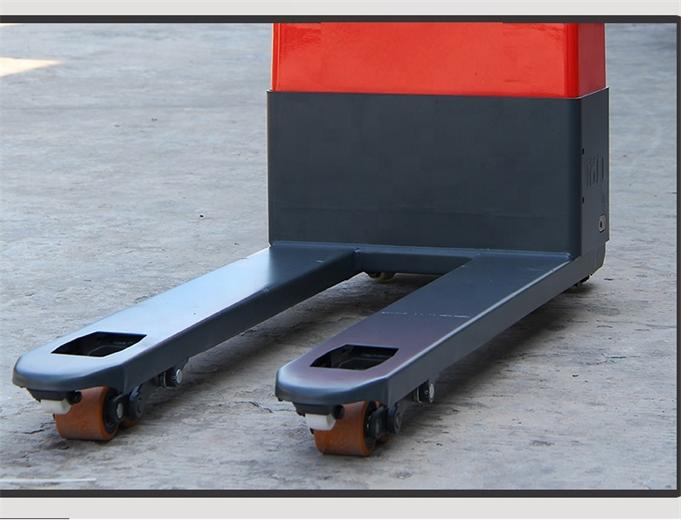

1.Fork fit double-deck pallet.

2.Separately excited motor, Strong climbing ability.

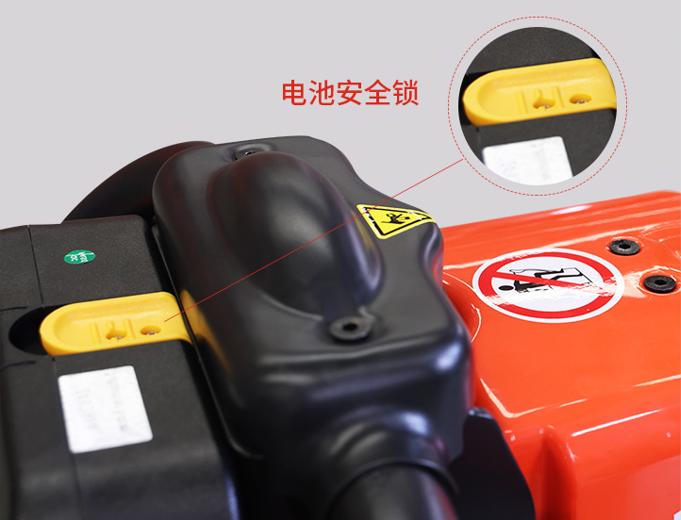

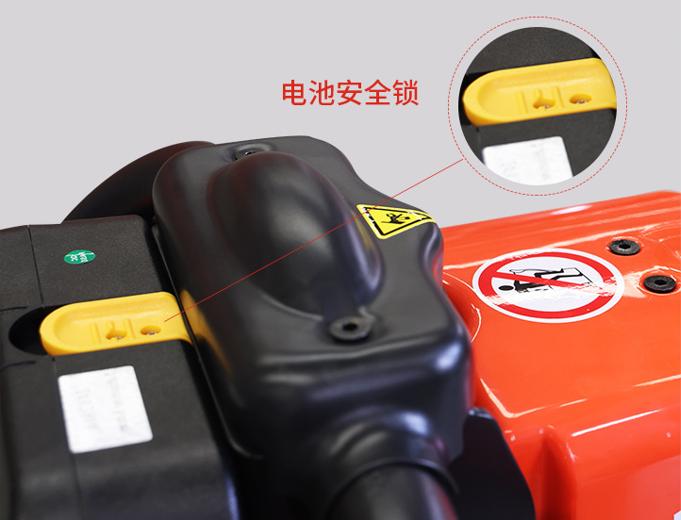

3.Battery open design, easy to replacement.

4.Built-in charger is standard.

5.Sealed batteries free of maintenance, safe operation and pollution.

6.Small body, suitable for narrow space.

7.Automatic lifting limit, safety, energy saving.

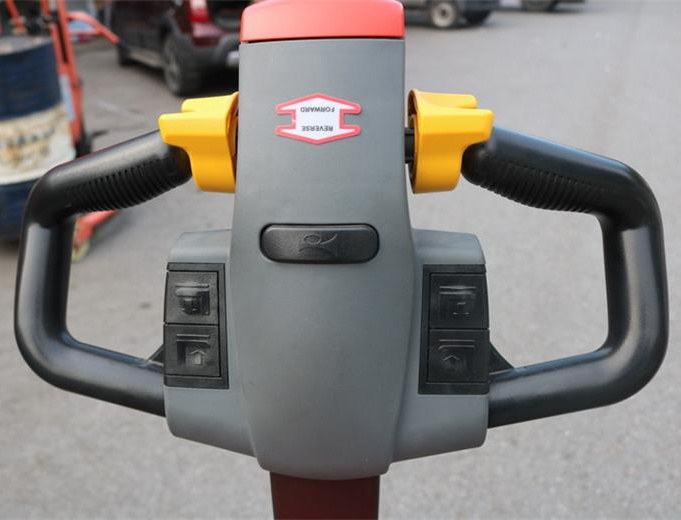

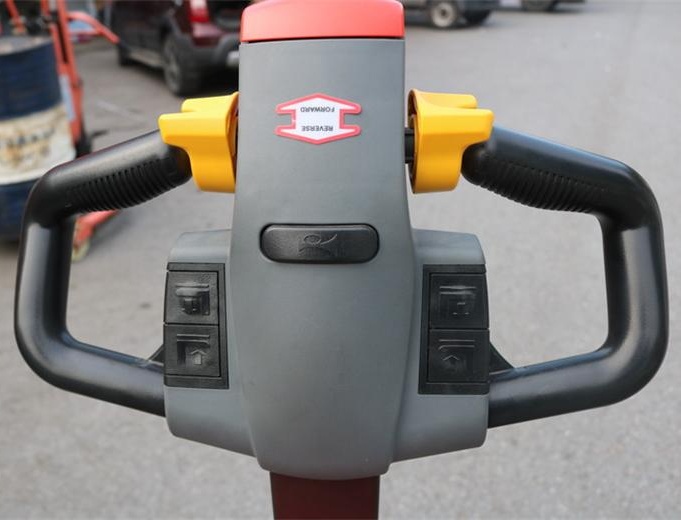

8.Emergency reversing device and Emergency brake switch.

9.Low noise, low energy consumption, Every day only 24KWh.

Product Parameters

Model				EPT15
identification	1.1	Power type	/	battery
	1.2	Operation type	/	walkie
	1.3	Rated capacity	kg	1500
	1.4	Load center	mm	600
	1.5	Wheelbase	mm	1222/1272
weight	2.1	Weight (with battery)	kg	192

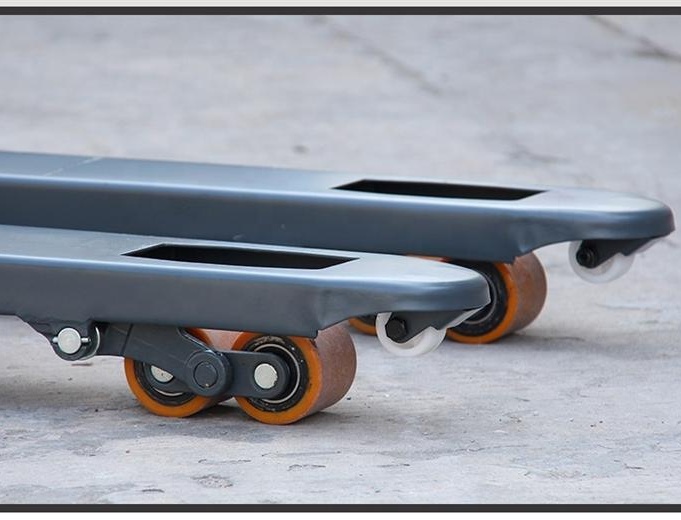

wheel	3.1	Tire	/	Polyurethane
	3.2	Tire size, front	mm	Φ210×80
	3.3	Tire size, rear		Φ80×70
dimension	4.1	Lifting height	mm	115
	4.2	Max. height	mm	200
	4.3	Min. height	mm	85
	4.4	Overall length	mm	1570/1620
	4.5	Overall width	mm	562/707
	4.6	Fork length	mm	1150/1200
	4.7	Fork width	mm	540/685
	4.8	Turning radius (wa)	mm	1380/1420
	4.9	Aisle width for pallets (1000×1200mm)	mm	1770/1820
performance	5.1	Travel speed (laden/unladen)	km/h	4.6/5.9
	5.2	Lifting speed (laden/unladen)	mm/s	56/60
	5.3	Lowering speed (laden/unladen)	mm/s	57/59
	5.4	Gradability (laden/unladen)	％	5/7
electric	6.1	Drive motor	kw	0.6
	6.2	Lifting motor	kw	0.8

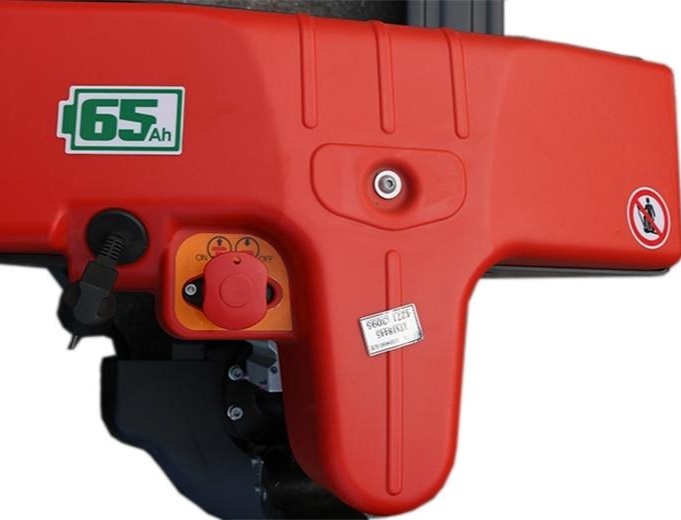

	6.3	Battery	V/Ah	24V/60Ah
	6.4	Controller	/	CURTIS
	6.5	Brake	/	Electromagnetic/regenerative
	6.6	Noise level at driver’s ear	db	＜70
