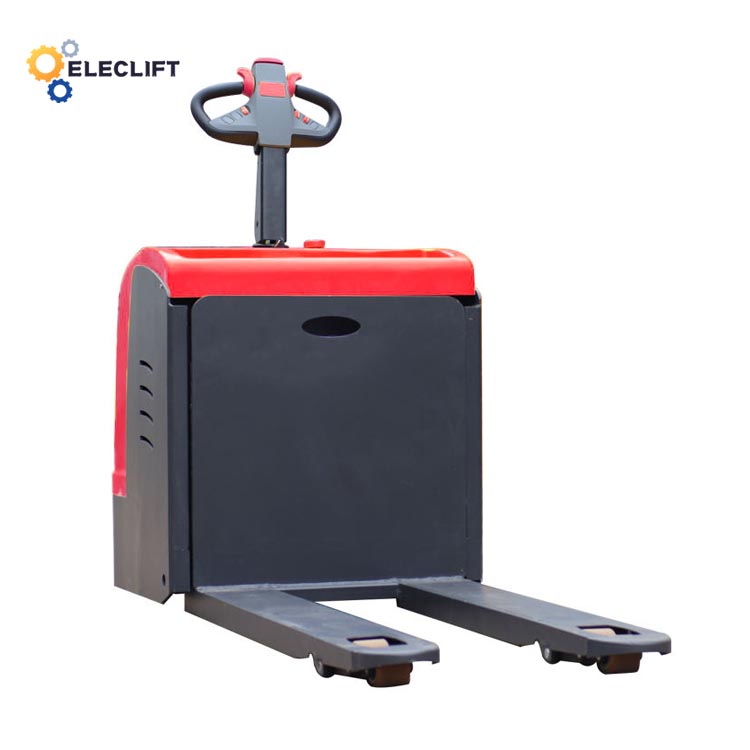

Stand on Full Electric Pallet Truck

Rated Capacity:1000-3000kg
Max. Lifting Height: 200mm
Fork dimensions: 1150mm×180mm×50mm
Control: Full electric ride on/ Handle
Operate type: Stand up

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Details Show

Request A Quote

Product Description

CBD20N/25N ride on pallet truck is professional solution for material handling in warehouse, it adopts the latest technology and renowned components to ensure the excellent performance. It is your best choice when it comes to price efficient material handling equipment. It can be widely used in factory, warehouse, medical, super market for material handling.

Product Advantage

Progressiveness

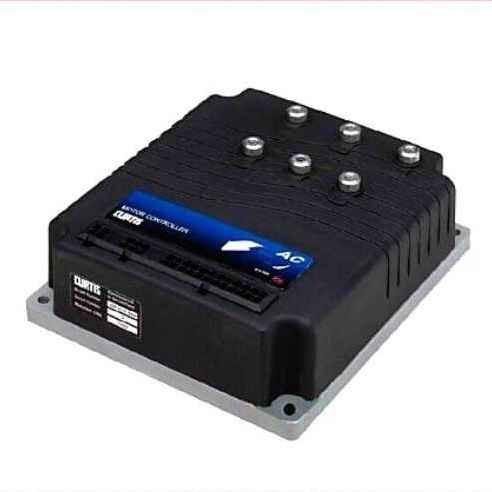

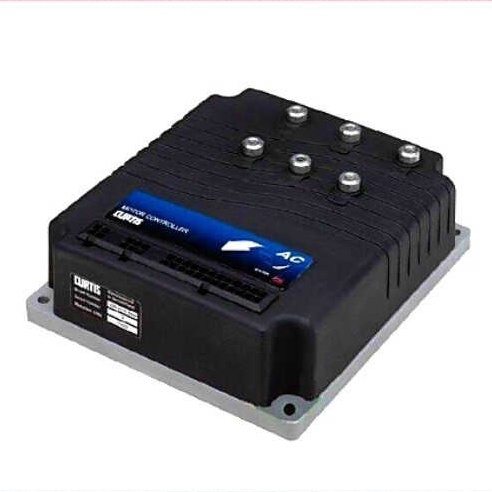

◆AC driving motor and controller uses the most advanced foreign brands, to ensuring the smooth running of precise, vehicle with regenerative braking ramp, anti-slip, motor maintenance free function.

◆Lifting motor, hydraulic power unit, an operating handle, a power plug, power display main parts list and chronograph all adopt famous brand products.

◆Suspension design using drive system, ensure the wheel and the ground contact good, the steering handiness, comfortable operation.

Stability, safety, reliability:

◆The vehicle adopts 5 fulcrum design, including elastic mounted driving wheel, excellent stability.

◆Release acceleration button, the automatic braking, with ramp anti slide function, to ensure safe operation.

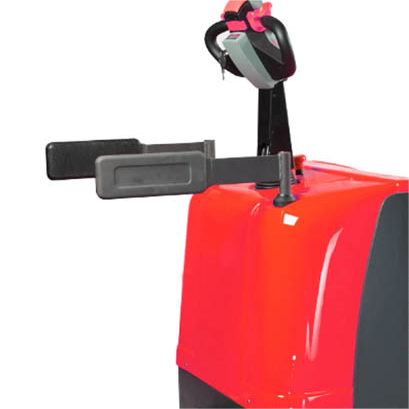

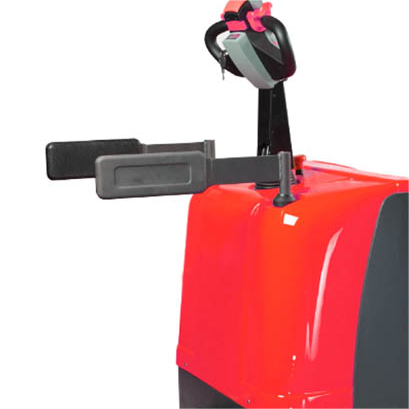

◆The two sides of the guard rail can effectively protect the safety of the operator.

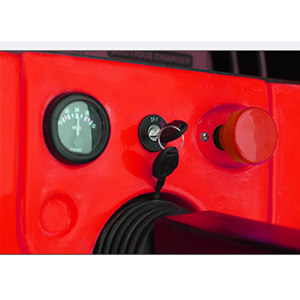

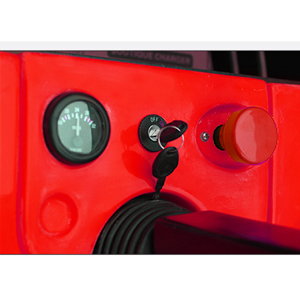

◆Emergency power-off switch as standard, compliance with European safety standards.

◆Using the non-contact type micro switch, long service life.

◆Hydraulic power unite with low noise, small pressure loss, and good reliability.

Product Parameters

Model			CBD-20N	CBD-25N
Parameters	Operate type	/	Stand up	Stand up
	Rated capacity	kg	2000	2500
	Load center	mm	600	600
	Drive unit	/	Electric	Electric
	Wheelbase(y)	mm	1495	1495
	Self weight (without battery)	kg	320	340
Wheels and tyres	Driving wheel	mm	Φ230×75	Φ230×85

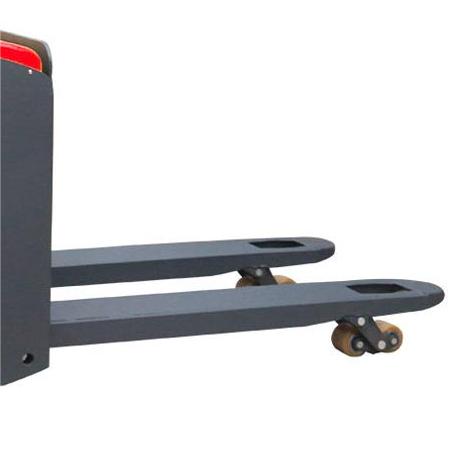

	Load wheel	mm	Φ80×70	Φ80×70
	Balance wheel	mm	Φ130×55	Φ130×55
	Balance wheel wheelbase(b10)	mm	498	498
	Load wheel wheelbase(b11)	mm	500/390	500/390
Dimensions	Max. lift height(h3)	mm	200	200
	Fork ground clearance(h13)	mm	85	85
	Total length(L1)	mm	1856	1856
	Total width(b1)	mm	730	730
	Fork dimensions(L/W/H)	mm	1150×180×50	1150×180×50
	Fork width(b5)	mm	680/570	680/570
	Turning radius (wa)	mm	1530	1530
Performance	Traction speed (lade/unlade)	Km/h	5/6	5/6
	Lifting speed (lade/unlade)	mm/h	25/30	25/30
	Lowering speed (lade/unlade)	mm/h	30/25	30/25
	Maximum grade ability(lade/unlade)	％	6/15	6/15
	Brake type	/	Electric at butterfly release	Electric at butterfly release
Motors battery	Traction motor	kw	1.5kw/24v	1.5kw/24v
	Lift motor	kw	2.2kw/24v	2.2kw/24v

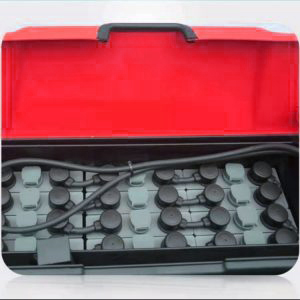

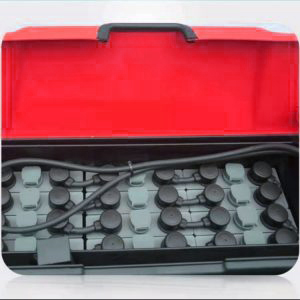

	Battery volts/ampere	V/Ah	21AH	21AH
	Battery weight	kg	200	200
	noise	dB	70	70
