Stand On Electric Reach Stacker

Load capacity: 1500/2000kg
Lifting height: 1.6m-5.5m
Power type: Battery
Operate type: Stand on

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Details Show

Request A Quote

Product Description

The ERS series is a reach stacker produced by ELECLIFT. It is battery-driven, has a maximum load capacity of 2.0t, a large reach distance, can be used for a variety of pallets, and can operate between narrow shelves.

Product Advantage

◆Large capacity traction battery with long working time, convenient and fast to charge.

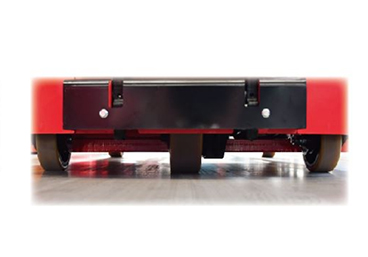

◆Excellent performance driving wheel, equipped with reliable brake system.

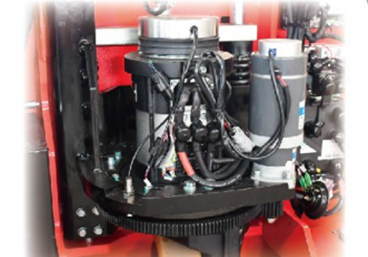

◆Maintenance-free high-power AC drive system, providing reliable driving power;

◆The standard CURTIS series controller is reliable and durable.

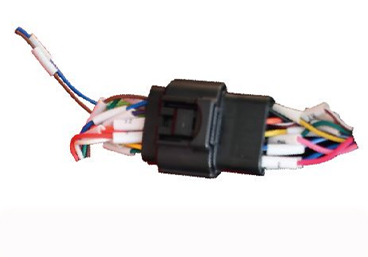

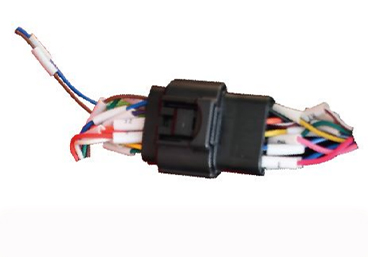

◆AMP waterproof and dustproof plug-in, which provides reliable protection for the circuit and greatly reduces electrical faults;

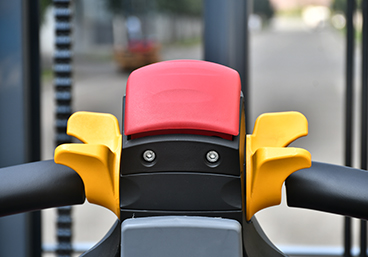

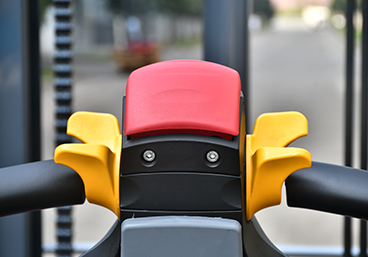

◆Platform type, pure electronic steering, integrated control handle, safe, labor-saving, flexible operation;

◆The frame is made of high strength steel plate frame structure, with large residual bearing capacity and long service life.

Product Parameters

Model		ERS1545	ERS1545B	ERS1555C	ERS2045	ERS2045B	ERS2055C
Power type		Battery	Battery	Battery	Battery	Battery	Battery
Driving mode		Stand-on type	Stand-on type	Stand-on type	Stand-on type	Stand-on type	Stand-on type
Rated load	Q(kg)	1500	1500	1500	2000	2000	2000
Load center distance	C(mm)	500	500	500	500	500	500
Vehicle weight (including battery)	kg	1850	2100	2150	2100	2200	2250
Lifting height	h3(mm)	1600-4500	2500-4500	4000-5500	1600-4500	2500-4500	4000-5500

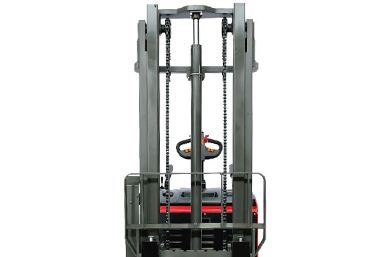

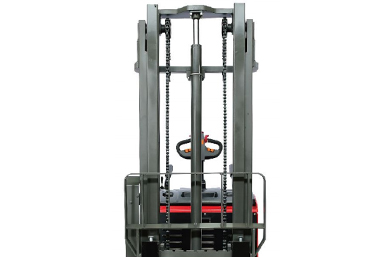

Mast		1/2 stage mast	2 stage mast	3 stage mast	1/2 stage mast	2 stage mast	3 stage mast
Vehicle length (pedal folded)	L1(mm)	≤2400	≤2400	≤2450	≤2530	≤2530	≤2600
Vehicle width	b1/b2(mm)	900/1105	900/1105	900/1105	900/1105	900/1105	900/1105
Fork size	l/e/s(mm)	1070/100/35	1070/100/35	1070/100/35	1070/122/40	1070/122/40	1070/122/40
Fork outer distance	b5(mm)	220-710	220-710	220-710	264-732	264-732	264-732
Forward distance	14(mm)	570	570	570	685	685	685
Turning radius (pedal folded)	Wa(mm)	1760	1760	1760	1950	1950	1950
Travel speed, full/empty	km/h	5.5/6	5.5/6	5.5/6	5.5/6	5.5/6	5.5/6
