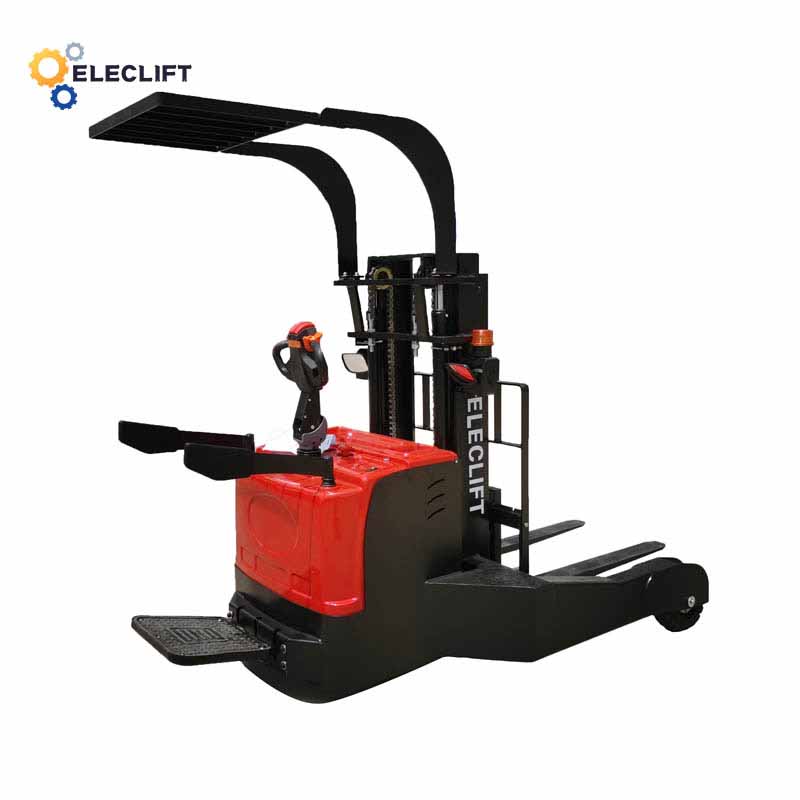

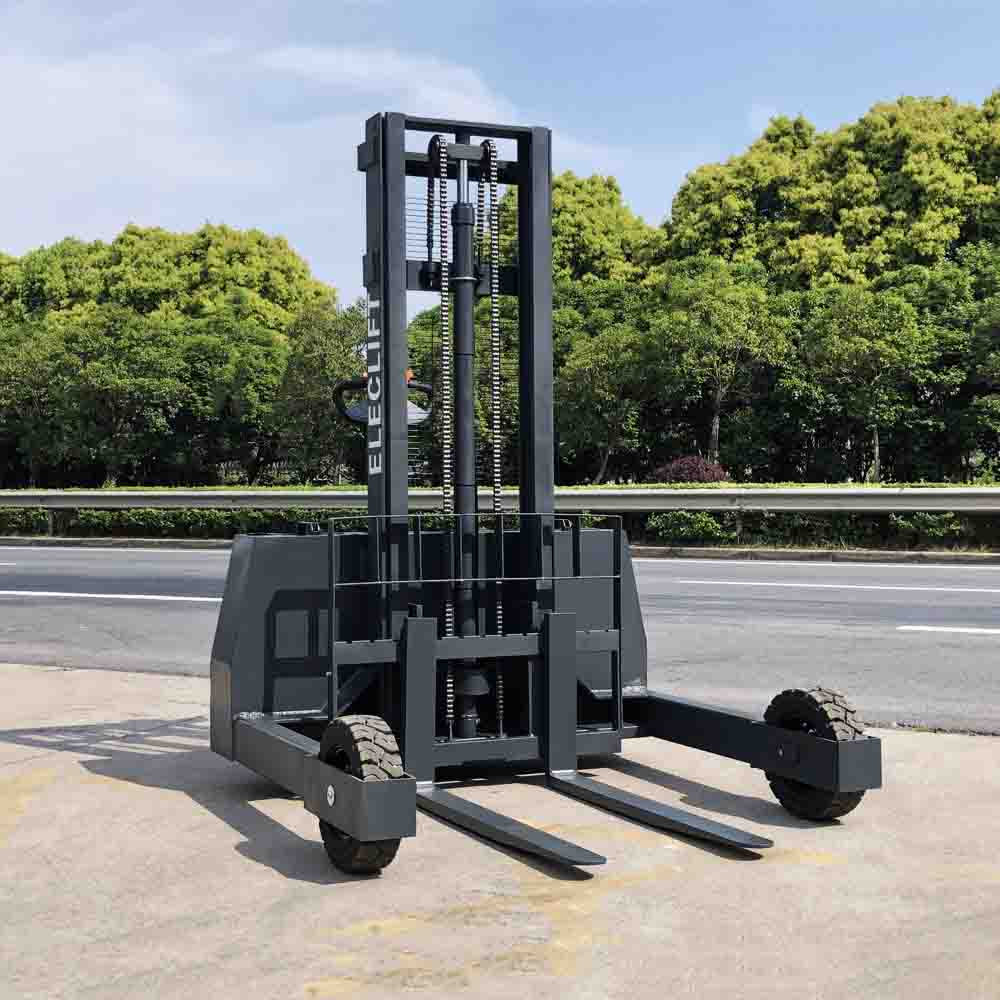

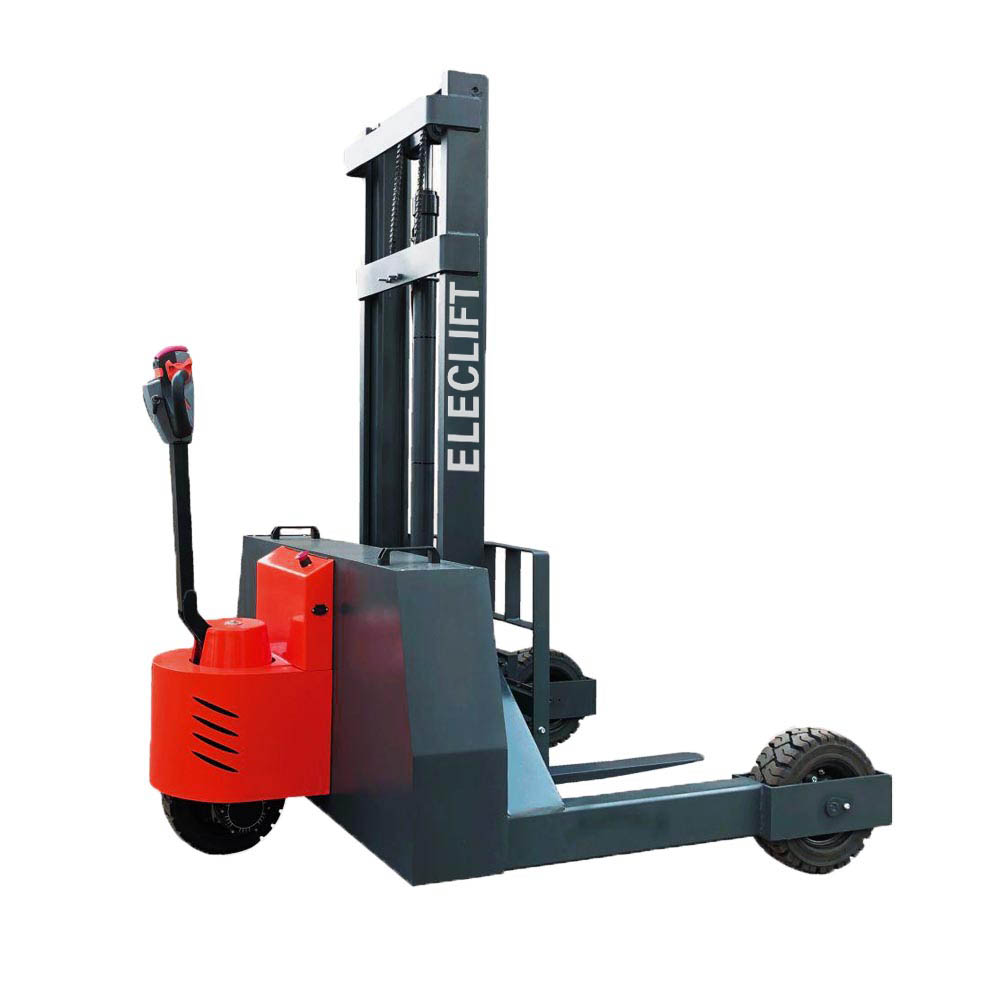

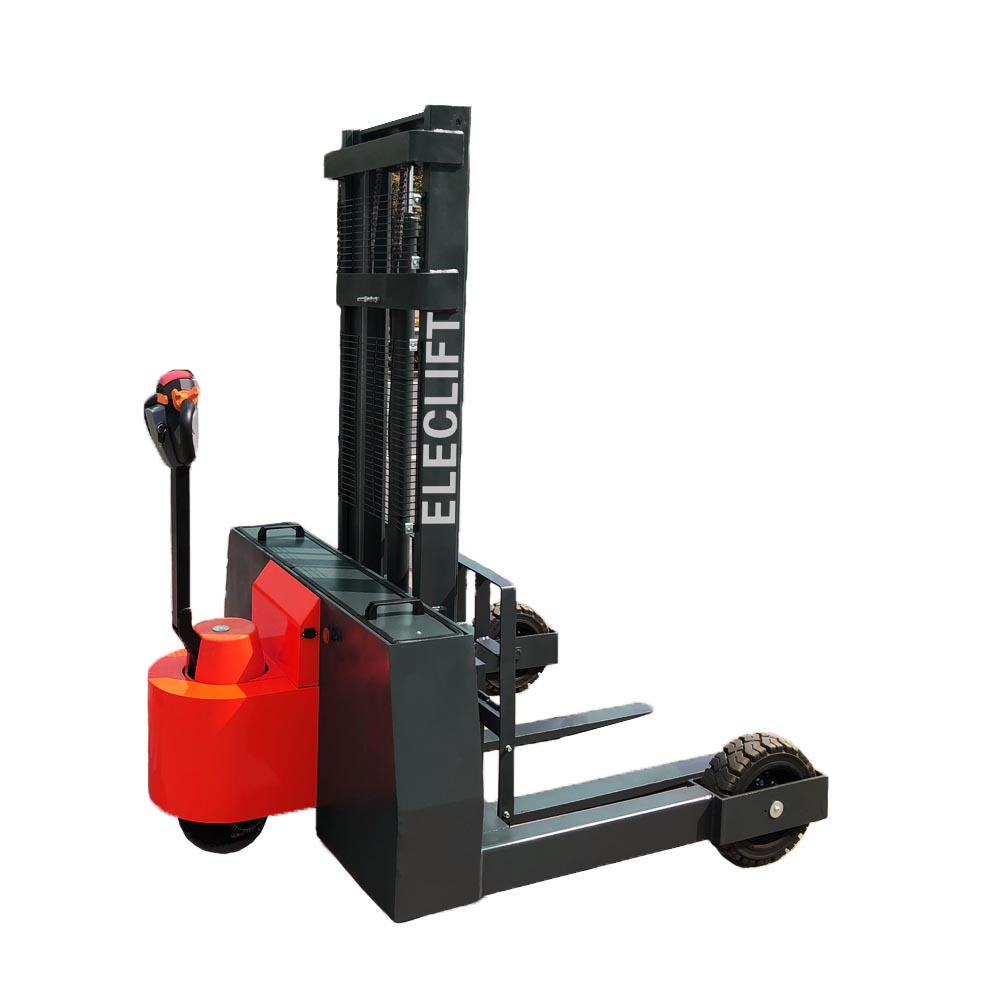

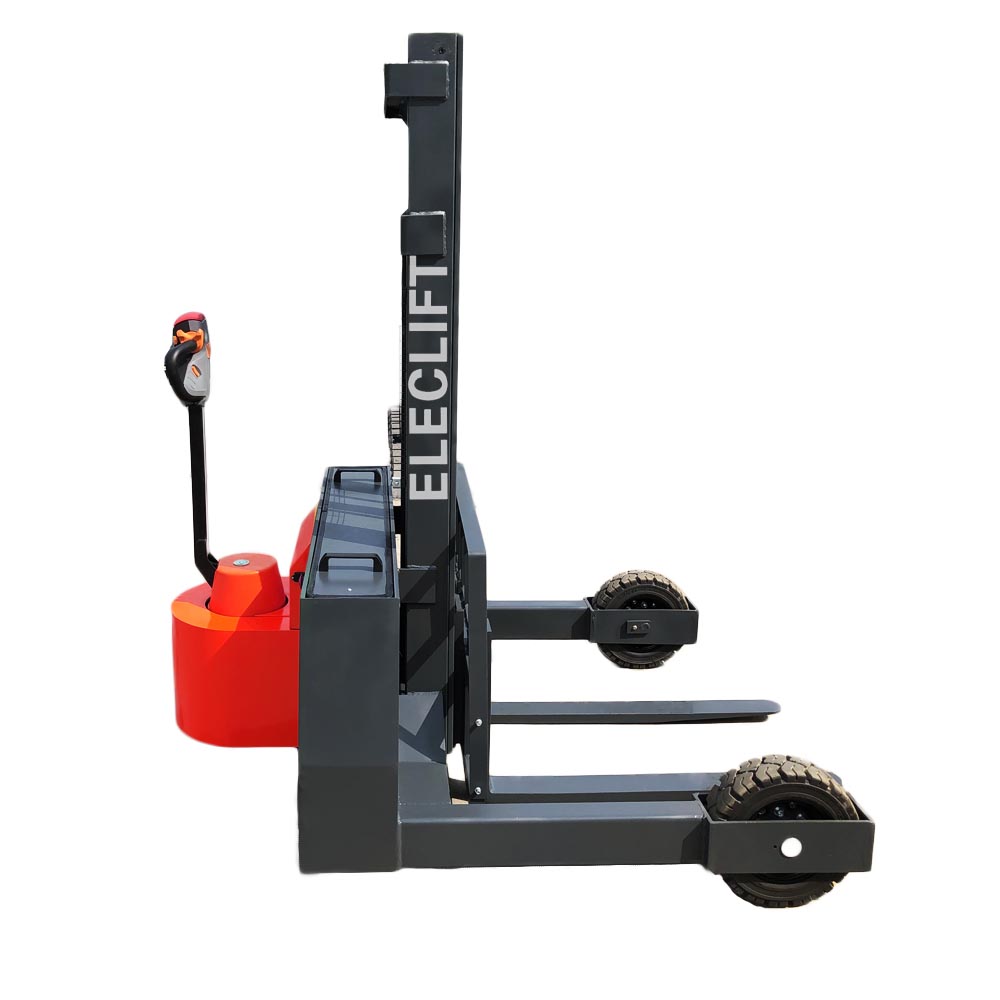

Rough Terrain Pallet Stacker

  • Load capacity: 1500kg-3000kg
  • Lifting height: 1.6m-5m

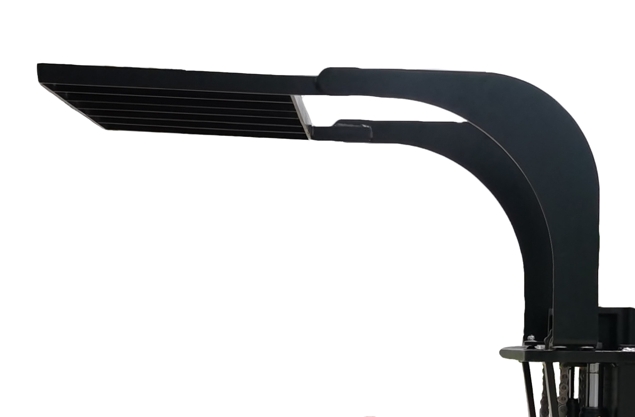

  • Fork dimension: 1150*160*65mm
  • Drive unit: Standing-on Full Electric

Product Description

The ELECLIFT Rough Terrain Pallet Stacker is equipped with rugged tires and chassis that can operate on a variety of rough terrains such as gravel, mud, grass or uneven roads, making it ideal for use in outdoor environments such as construction sites, lumber yards, nurseries or farms.

Product Advantage

◆Outdoor use: Equipped with all-terrain tires and higher ground clearance, it is ideal for use in outdoor environments such as construction sites, lumber yards, nurseries or farms, which is a challenge for standard stackers designed for smooth indoor floors.

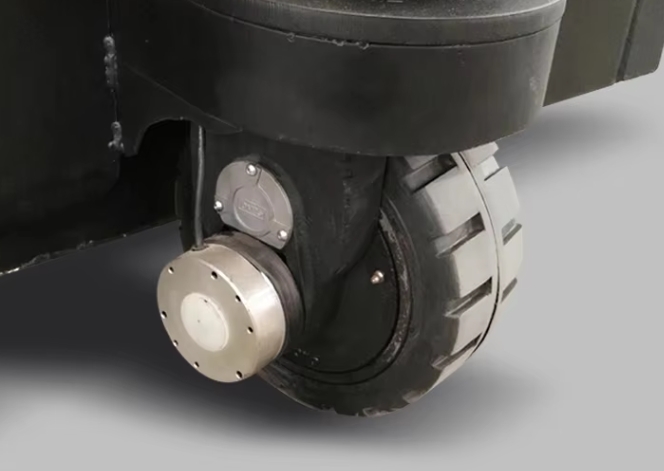

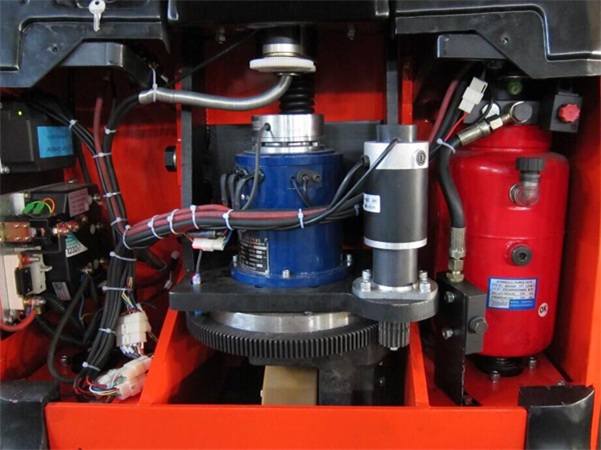

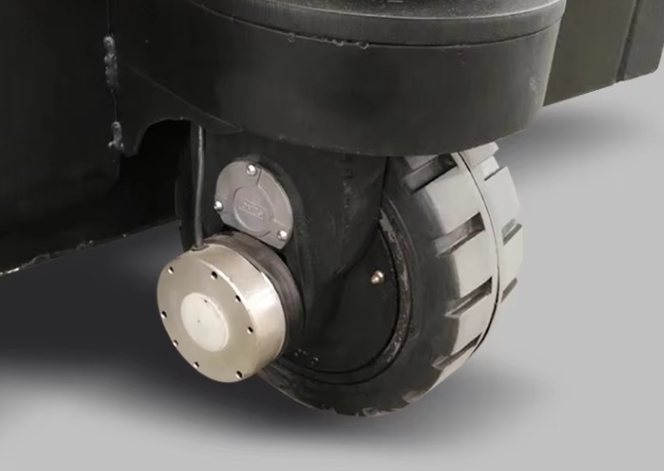

◆Powerful power: Equipped with high-power AC motors, excellent performance drive wheels, and equipped with a reliable braking system to provide power guarantee.

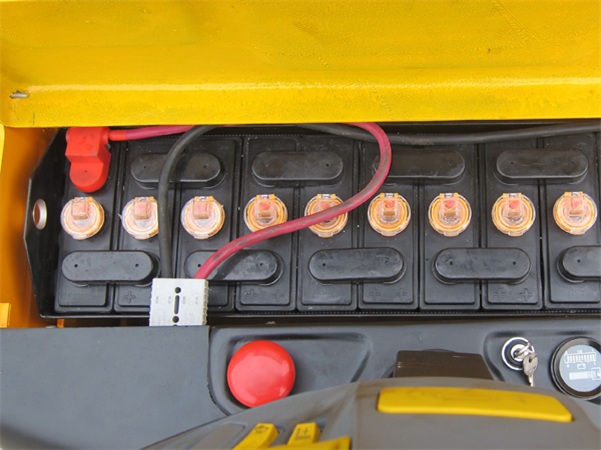

◆Large-capacity battery: Large-capacity traction battery, long working time, convenient and fast charging.

◆Durability: These stackers are equipped with sturdy tires and a sturdy chassis, which enables them to travel on rough roads without getting stuck or damaged, and can withstand the rigors of outdoor use and harsh environmental conditions.

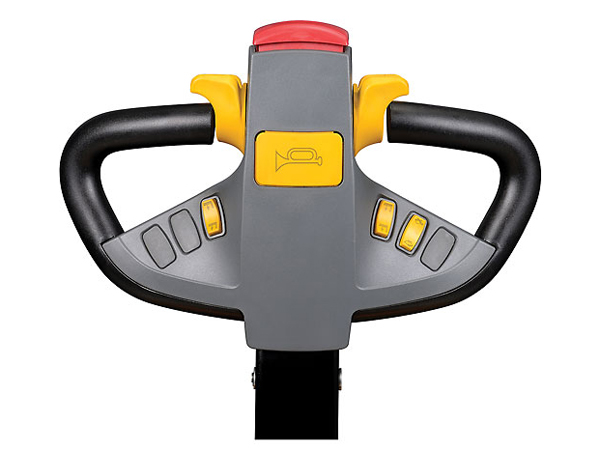

◆Imported electronic control system: responsive, easy to control, higher reliability and lower failure rate.

◆Increase productivity: By efficiently handling pallets in outdoor environments, off-road stackers help improve productivity and reduce manual handling workload.

Product Parameters

Model CTQR15 CTQR20 CTQR20S CTQR25 CTQR30
Drive type Electric Electric Electric Electric Electric
Driving mode Stand On Stand On Stand On Stand On Stand On
Rated load kg 1500 2000 2000 2500 3000
Adjustable Overall Fork Width mm Max. 850 Max. 850 Max. 850 Max. 850 Max. 850
Leg Inside Width mm 1270 1270 1270 1270 1270
Load center mm 500 500 500 500 500

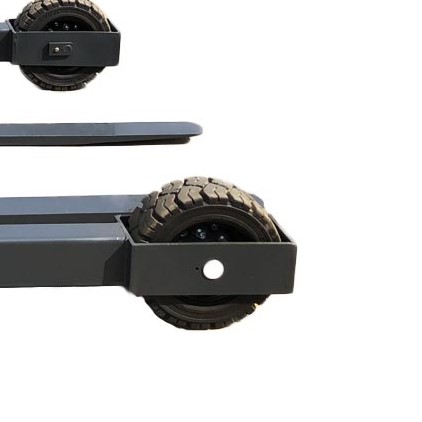

Front Tyre mm Φ406×110 Solif Rubber Tyre

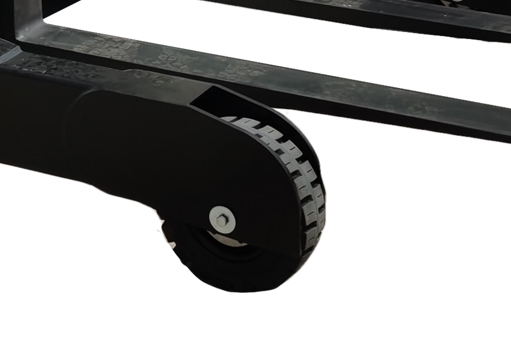

Rear Tyre mm Φ310×100 Solif Rubber Tyre
Lifting height mm 1600/2000/2500/3000/3500
Vehicle length mm 2023/2419 2023/2419 2023/2419 2023/2419 2143/2539
Vehicle width mm 852 852 852 852 852
Fork size mm 170/60/1150 170/60/1150 170/60/1150 180/60/1150 200*70*1150
Fork outer width mm 1574 1574 1574 1574 1574
Drive motor power kw DC0.75 AC1.5 AC1.5 AC1.5 AC1.5
Lifting motor power kw 2.2 2.2 2.2 3 3
Battery V/Ah 2*12V/120Ah 2*12V/120Ah 24V/180Ah 24V/210Ah 24V/210Ah
