Electric Reach Truck

Load capacity: 1200kg-3000kg
Lifting height: 3.0m-12.5m
Power type: Battery

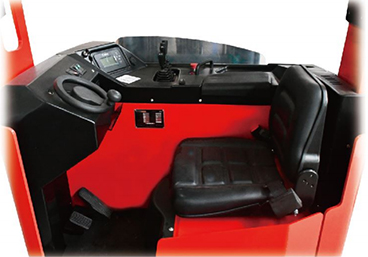

Operate type: Stand on/Seated

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Details Show

Request A Quote

Product Description

ELECLIFT Electric Reach Truck series is a new-design reach truck, with loading capacity from 1.2 to 3.0 tons and various lifting height. The mast can be moved forward or backward as a whole, which has a smaller body, turning radius and higher efficiency is built for stacking in intensive applications in stores and factories.

Applicable to：

Medium storage density and high working turnover rate;

Narrow aisle stacking

Product Advantage

◆Smaller body size with smaller turning radius and right angle stacking channels.

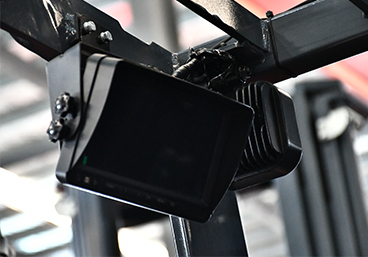

◆Equipped with video surveillance function to ensure the safety of lifting work.

◆Large capacity traction battery with long working time, convenient and fast to charge.

◆Excellent performance driving wheel, equipped with reliable brake system.

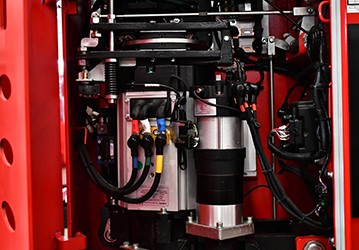

◆AC motor, no brush, maintenance free, greatly saves the cost.

◆ EPS electric power steering, better feel and lower energy consumption.

◆With the speed limit function of turning, can effectively protect the safety of goods and operators.

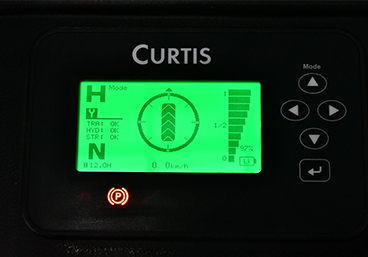

◆Advanced Curtis controller, more stable and safer.

Product Parameters

Model		ERT12	ERT15	ERT20	ERT25	ERT30	ERTS16	ERTS16H	ERTS20	ERTS20H	ERTS25
Power type		Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery
Driving mode		Stand-on type	Stand-on type	Stand-on type	Stand-on type	Stand-on type	Seated	Seated	Seated	Seated	Seated
Rated load	Q(kg)	1200	1500	2000	2500	3000	1600	1600	2000	2000	2500
Load center distance	C(mm)	500	500	500	500	500	500	500	500	500	600
Vehicle weight (including battery)	kg	2250	2850	2950	3580	3680	3710	4530	4000	4670	5038
Fork tilt range, front/rear	α/β(°)	3/5	3/5	3/5	2/6	2/6	3/5	3/5	3/5	3/5	2/4
Lifting height	h3(mm)	4500	4500	4500	4500	4500	7500	10000	7500	10000	10000
Vehicle length	l1(mm)	2106	2283	2336	2434	2534	2340	2496	2421	2496	2532
Vehicle width	b1/b2(mm)	1090/1000	1090/1170	1090/1170	1190/1270	1190/1270	1270/1290	1270/1390	1270/1290	1270/1390	1270/1400
Fork size	l/e/s(mm)	1070/100/35	1070/100/35	1070/122/40	1070/122/40	1070/125/45	1070x100x35	1070x122x40	1070x122x40	1070x122x40	1070x125x45
Fork outer distance	b5(mm)	222-750	222-750	244-772	244-772	250-750	222-750	266-725	266-772	266-725	250-750
Fork forward distance	l4(mm)	570	525	677	775	875	583	617	617	617	715
Turning radius	Wa(mm)	1492	1594	1784	1995	2192	1700	1872	1798	1872	1987
Driving speed, full/empty	km/h	6/7	9/10	9/10	9/10	8/10	14/14	14/14	14/14	14/14	8.5/10
Battery, voltage/rated capacity	V/Ah	24/350	48/300	48/300	48/400	48/400	48/420	48/420	48/560	48/560	48/560
Battery replacement method		Side-pull type	Side-pull type	Side-pull type	Side-pull type	Side-pull type	Quick disassembly	Quick disassembly	Quick disassembly	Quick disassembly	Quick disassembly
