LPG & Gasoline Forklift

Capacity: 1500kg-4000kg
Lifting height: 2m-6m

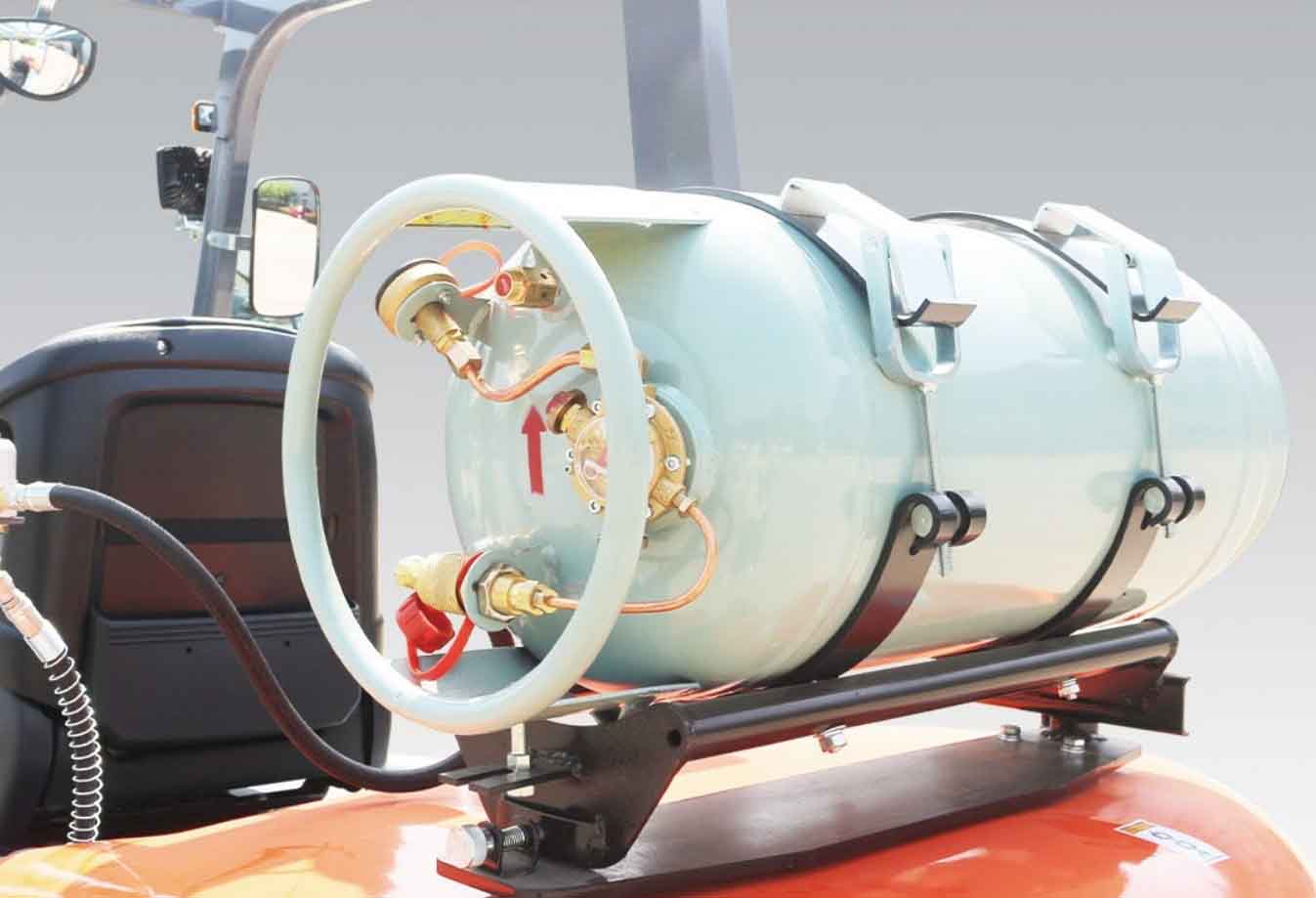

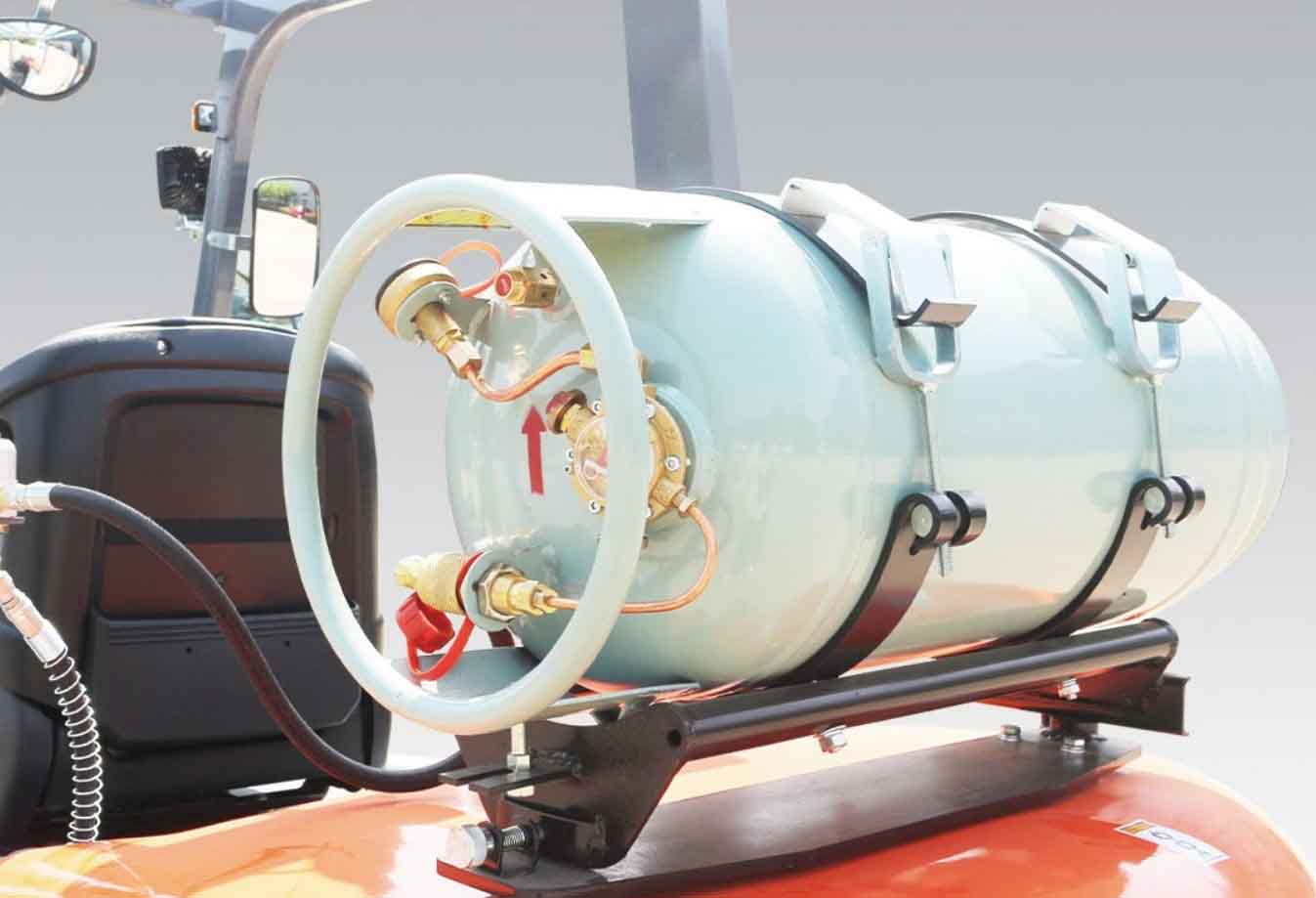

Power type: Liquefied gas/gasoline

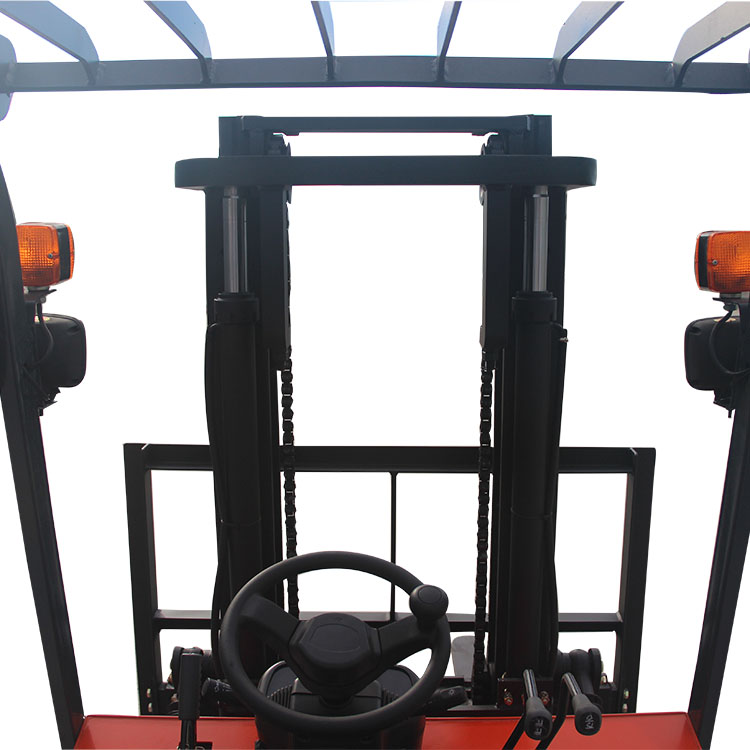

Mast type: 2 or 3 stage mast

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Parts Details

Request A Quote

Product Description

ELECLIFT LPG & Gasoline Forklifts are a popular choice for material handling operations, with lower fuel costs, lower emissions and fewer failure rates.

Product Advantage

◆Lower Fuel Costs: LPG is often cheaper than diesel or gasoline, leading to lower operational costs over time.

◆Lower Emissions: LPG forklifts produce fewer emissions compared to diesel forklifts, making them suitable for indoor use without significant ventilation requirements.

◆Longer Engine Life: LPG engines generally have longer lifespans and require less maintenance compared to diesel engines.

◆Versatility: They can be used both indoors and outdoors, providing flexibility in various operating environments.

◆Fuel Availability: LPG is widely available and can be refueled quickly, minimizing downtime.

◆Power and Performance: LPG forklifts typically offer good power and performance, suitable for medium to heavy-duty applications.

Product Parameters

Model			CPQD15	CPQD20	CPQD25	CPQD30	CPQD35	CPQD40
Manufacturer			ELECLIFT
Power type			Liquefied gas/gasoline
Rated capacity	Q	kg	1500	2000	2500	3000	3500	4000
Load center distance	C	mm	500	500	500	500	500	500
Driving type			Seated	Seated	Seated	Seated	Seated	Seated
Wheel base	L1	mm	1400	1600	1600	1740	1740	1900
Tyres

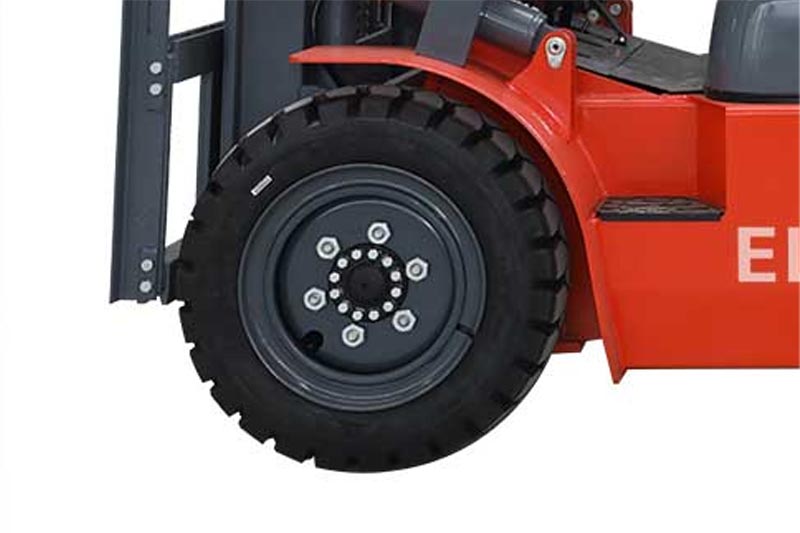

Tyre type			Pneumatic
Wheel number(front/rear)			2X/2	2X/2	2X/2	2X/2	2X/2	2X/2
Front tread	W3	mm	890	970	970	1000	1000	1160
Rear tread	W2	mm	920	970	970	970	970	1065
Tyre(front)			6.50-10-10PR	7.00-12-12PR	7.00-12-12PR	28X9-15-12PR	28X9-15-12PR	250-15-16PR
Tyre(rear)			5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.00-10-10PR	6.00-10-10PR	6.00-10-10PR
Size
Front overhang	L2	mm	420	477	477	479	498	520
Mast tilting angle,front/rear	α/β	。	6/12	6/12	6/12	6/12	6/12	6/12
Height with mast retraction	H1	mm	1990	2000	2000	2065	2180	2150
Free lifting height	H3	mm	125	170	170	160	170	150
Max. lifting height	H	mm	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000	3000-6000
Max. height after lifting	H2	mm	4030	4042	4020	4250	4250	4260

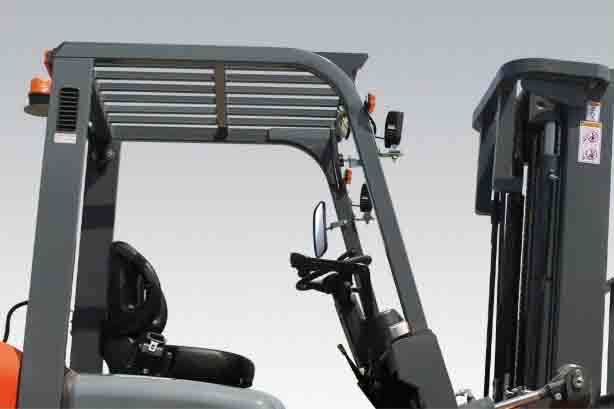

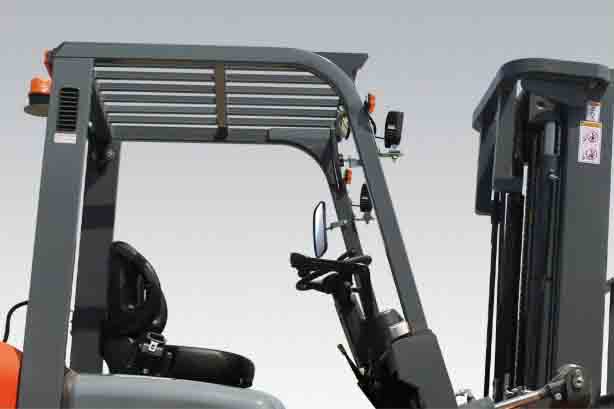

Overall guard height	H4	mm	2070	2070	2070	2090	2090	2100
Fork size: lengthxwidthxthickness	LxWxT	mm	920x100x35	920 x100x 40	1070x120x40	1070x 125x 45	1070 x 125 x 50	1070x 130x 50
Overall length(fork excluded)		mm	2230	2490	2579	2695	2700	2880
Overall width	w1	mm	1080	1160	1160	1225	1225	1410
Turning radius	r	mm	2060	2070	2070	2420	2420	2700
Ground clearance of mast	H5	mm	100	110	110	135	135	130

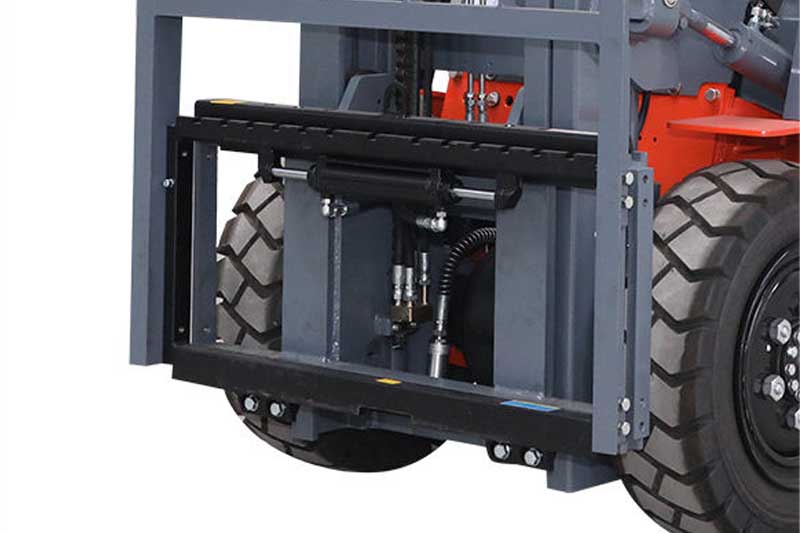

Lateral fork adjustment Max./Min	W5	mm	970/200	1038/200	1038/240	1100/250	1100/250	1300/300
Performance
Travelling speed (loaded/unloaded)		km/h	13/14	17/19	17/19	18/19	19/19	18/19
Lifting speed (loaded/unloaded)		mm/s	460/500	530/550	530/550	440/480	330/370	350/380
Lowering speed		mm/s	450/550	450/550	450/550	450/550	350/400	350/400
Gradeability (loaded)		%	18/23	21/27	18/23	20/20	16.5	15
Max.traction force (loaded)		N	20/21	20/21	45586	20/20	20	20
Weight
Total weight		Kg	2680	3320	3680	4270	4700	5310
Axle load (unloaded),front/rear		Kg	1170/1490	1328/1992	1420/2208	1708/2562	1880/2820	2120/3190
Axle load (loaded), front/rear		Kg	3640/520	4788/532	5562/618	6543/727	7380/820	8380/930

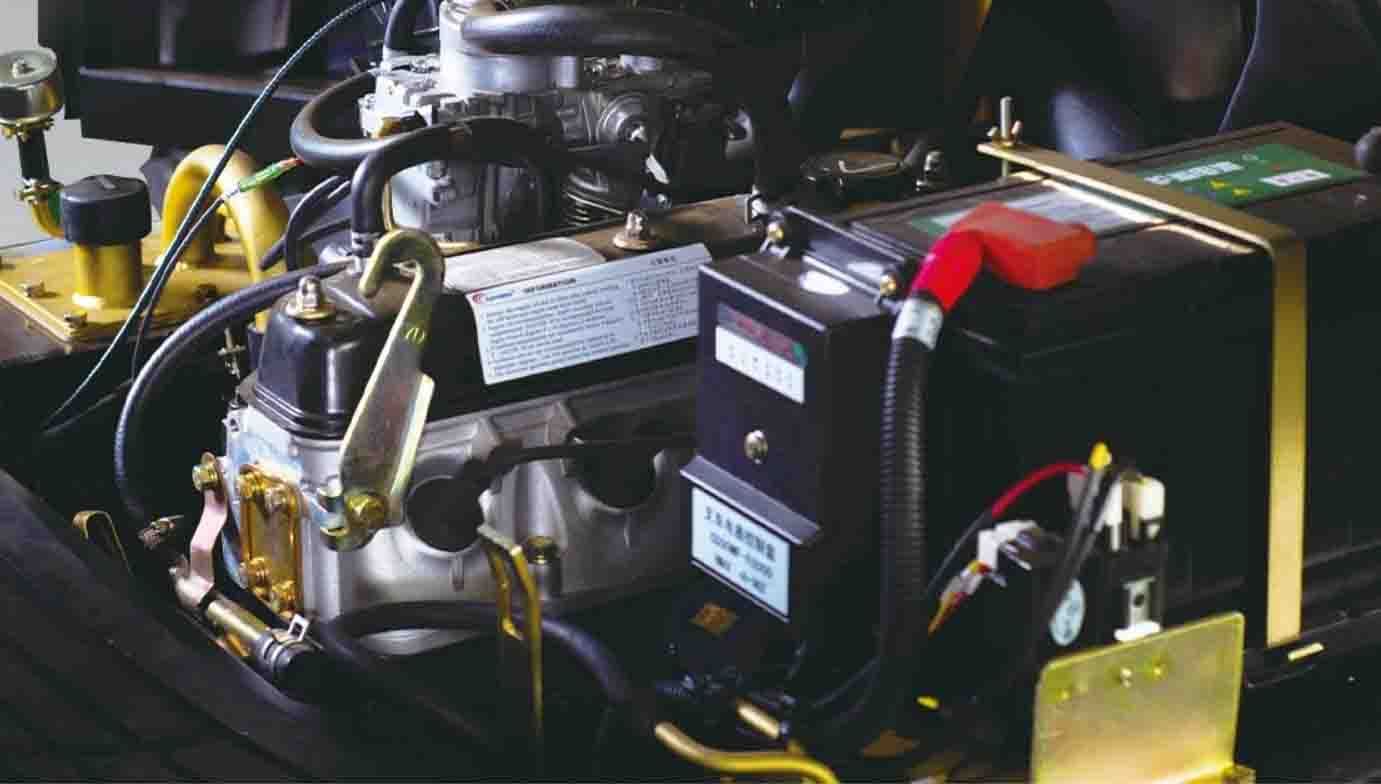

Combustion-engine
Engine manufacturer/Model			GQ-4Y
Rated power/Speed		Kw/rpm	37/2800
Max.torgue/5peed		Nm/rpm	154/1800
Cylinder number-bore × stroke			4-91X86
Engine displacement		L	2.237
Emission			/	/	/	/	/	/
Transmisstion gears(front/rear)			Manual Shift /Power Shift
Fuel tank capacity		L	45	60	60	60	60	70
Additional data
Service brake/narking brake					Hydraulic/Mechanical
Hydraulic system working pressure		Mpa	14.5	17.5	17.5	17.5	17.5 17.5
