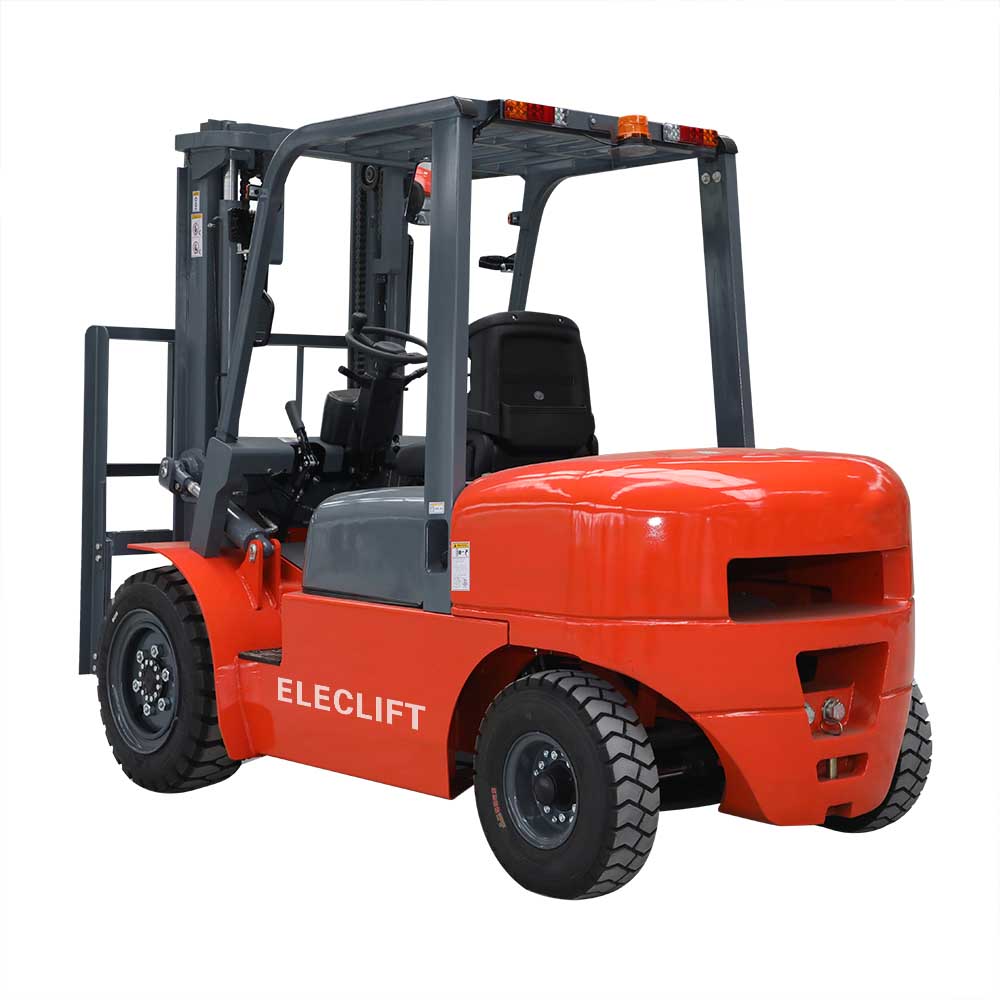

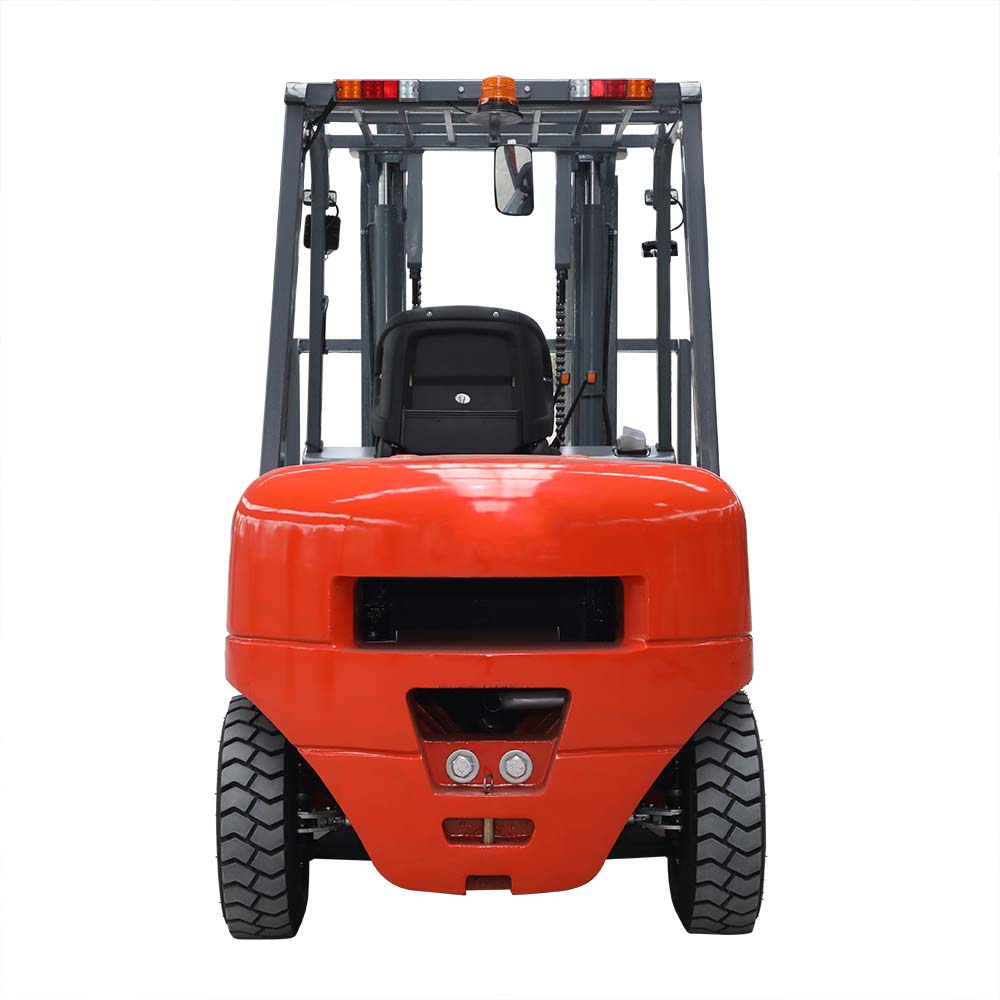

| ELECLIFT Diesel Forklift | |||
| Manufacturer | ELECLIFT | ||
| Model | DFB40 | DFB50 | |
| Rated capacity | Q | 4000 | 5000 |
| Load center distance | C | 500 | 500 |
| Power type | Diesel | Diesel | |
| Driving type | Seated | Seated | |
| Wheel base | L1 | 1900 | 2100 |

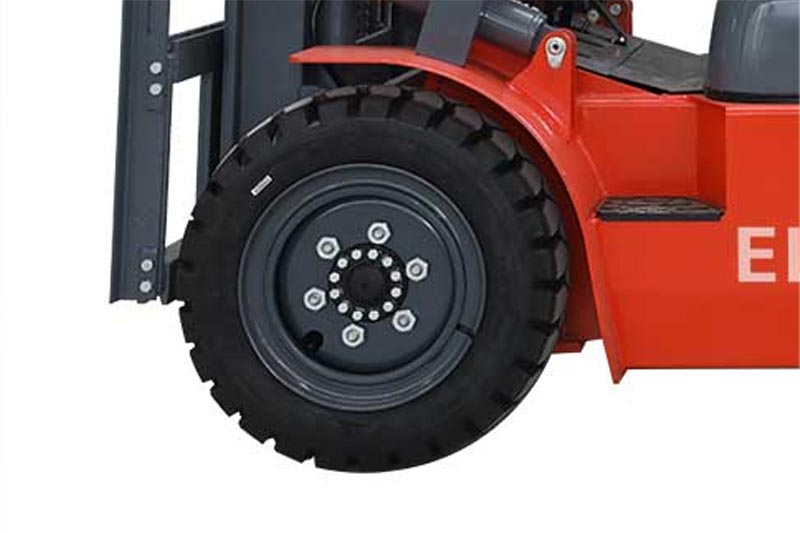

| Tyres | |||
| Tyre type | Pneumatic | Pneumatic | |
| Wheel number(front/rear) | 2X/2 | 2X/2 | |
| Front tread | W3 | 1160 | 1180 |
| Rear tread | W2 | 1065 | 1190 |
| Tyre(front) | 250-15-16PR | 300-15-18PR | |
| Tyre(rear) | 6.50-10-10PR | 7.00-12-12PR | |
| Size | |||
| Front overhang | L2 | 520 | 565 |
| Mast tilting angle,front/rear | α/β | 6/12 | 6/12 |
| Height with mast retraction | H1 | 2150 | 2330 |
| Free lifting height | H3 | 150 | 140 |
| Max. lifting height | H | 3000 | 3000 |
| Max. height after lifting | H2 | 4260 | 4280 |
| Overall guard height | H4 | 2100 | 2245 |
| Fork size: length x width x thickness | LxWxT | 1070x130x50 | 1220 x 150 x 55 |

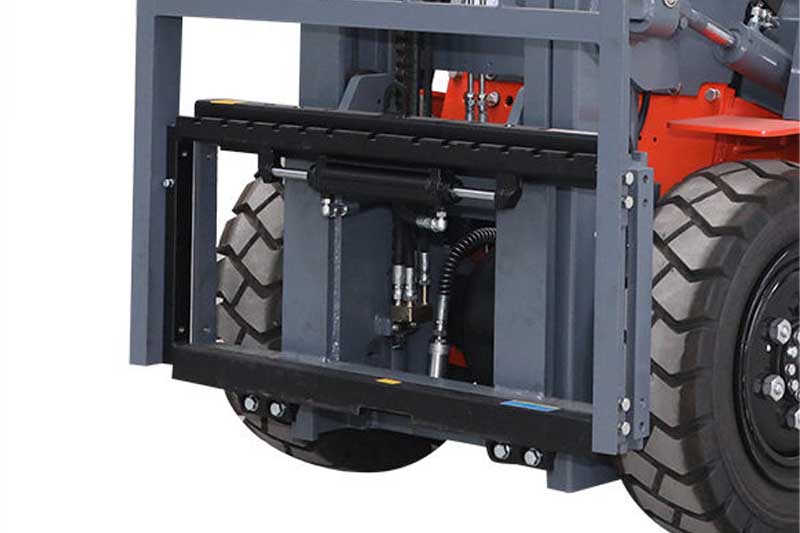

| Fork carriage, DIN standard | III | III | |
| Overall length(fork excluded) | L’ | 2880 | 3110 |
| Overall width | W1 | 1410 | 1480 |
| Turning radius | r | 2700 | 2740 |
| Ground clearance of mast | H5 | 130 | 160 |
| Ground clearance of wheel base center(loaded) | H6 | 145 | 200 |
| Lateral fork adjustment | W5 | 1290/260 | 1370/300 |
| Max./Min. | |||
| Performance | |||
| Travelling speed (loaded/unloaded) | 18/19 | 18/19 | |
| Lifting speed (loaded/unloaded) | 350/380 | 400/450 | |
| Lowering speed | 350/400 | 350/400 | |
| Gradeability (loaded) | 15/18 | 20/20 | |
| Max. traction force (loaded) | 20/18 | 21/20 | |
| Weight | |||
| Total weight | 5310 | 6400 | |
| Axle load (unloaded), front/rear | 2120/3190 | 2630/3770 | |
| Axle load (loaded), front/rear | 8380/930 | 9540/1360 | |

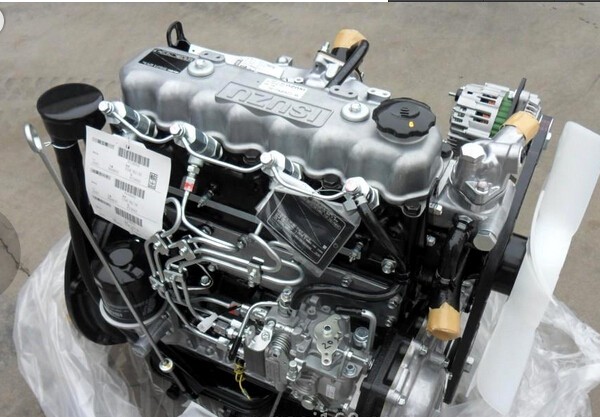

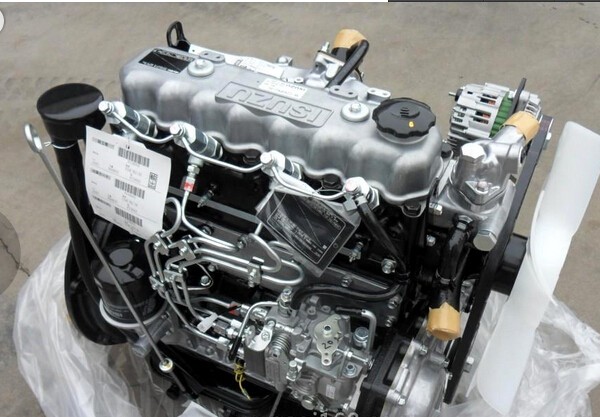

| Combustion -engine | |||
| Rated power/Speed | 46/2450 | 82.4/2000 | |
| Max.torque/Speed | 186/1700±100 | 416.8/1500 | |
| Cylinder number-borexstroke | 4-95.4×107 | 6-105×125 | |
| Engine displacement | 3.059 | 6.494 | |
| Transmisstion gears (front/rear) | 1-1 T/M | 2-1 T/M | |
| /2-2 T/M | /3-2 T/M | ||
| Fuel tank capacity | 70 | 80 | |
| Additional data | |||
| Service brake/parking brake | Hydraulic/Mechanical | Hydraulic/Mechanical | |
| Hydraulic system working pressure | 17.5 | 20 | |
