| Model | Unit | FB20 | FB25 | FB30 | FB35 | |||
| Characteristics | Power | / | Electric | |||||
| Operation type | / | Seat | ||||||
| Capacity/rated load | kg | 2000 | 2500 | 3000 | 3500 | |||
| Load center distance(c) | mm | 500 | ||||||
| Wheel base(y) | mm | 1500 | 1650 | |||||
| Self weight (with battery) | kg | 4100 | 4300 | 5150 | 5350 | |||

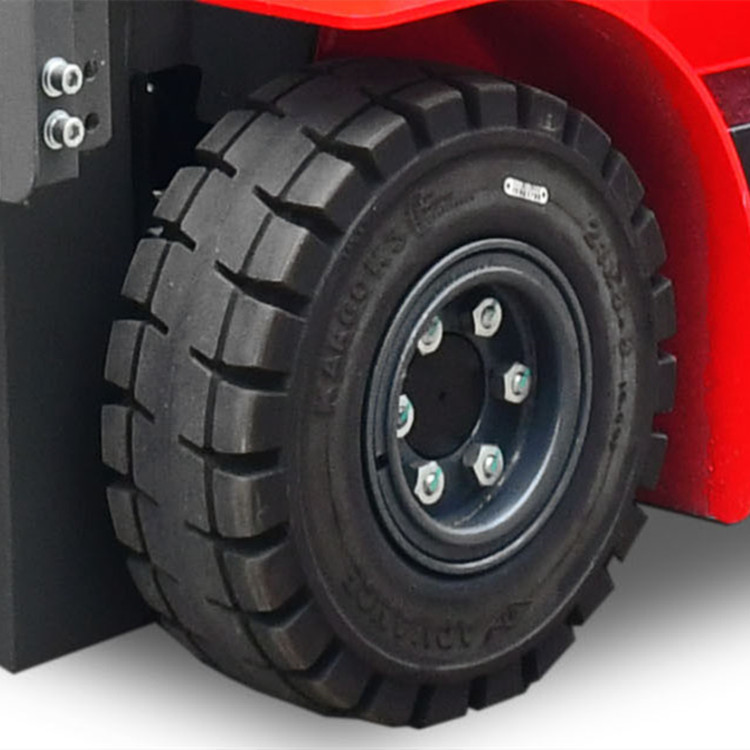

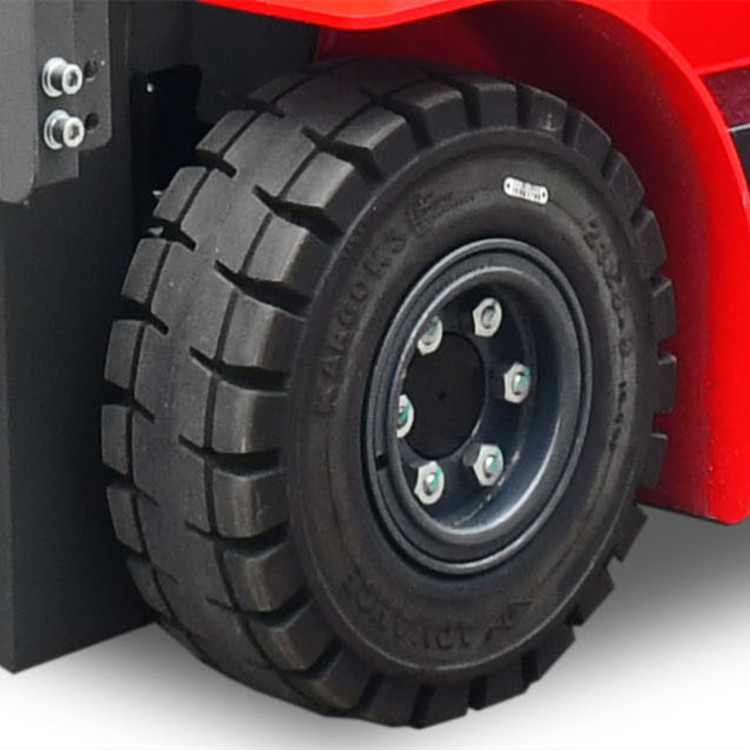

| Tyres | Tyres type | / | Pneumatic/solid | |||||
| Tyres size (front) | inch | 7.00-12-12PR | 28×9-15 | |||||
| Tyres size (rear) | inch | 18×7-8-14PR | ||||||
| Tyres, number front/rear | / | 2X/2 | ||||||
| Tread(rear/front)( b10/b11) | mm | 960/950 | 1050/1000 | |||||
| dimensions | Tilt of mast | αβ(°) | 6–12 | |||||
| Standard lift height(h3) | mm | 3000 | ||||||
| Free lift(h2) | mm | 120 | ||||||
| Overall length | mm | 2360 | 3640 | |||||
| Overall width(b1) | mm | 1150 | 1250 | |||||
| Mast lowered height(h1) | mm | 2065 | 2060 | |||||
| Mast extended height(h4) | mm | 4100 | 4260 | |||||
| Height of overhead guard | mm | 2220 | ||||||
| Fork dimensions(l*e*s) | mm | 1070*100*40 | 1070*125*45 | |||||
| Fork adjustment(b3) | mm | 200-1000 | 250-1100 | |||||
| Traction pin height | mm | 300 | ||||||
| Mast ground clearance
(laden/unladen) |
mm | 100/130 | ||||||
| Ground clearance, center of wheelbase(laden/unladen) | mm | 125/130 | ||||||

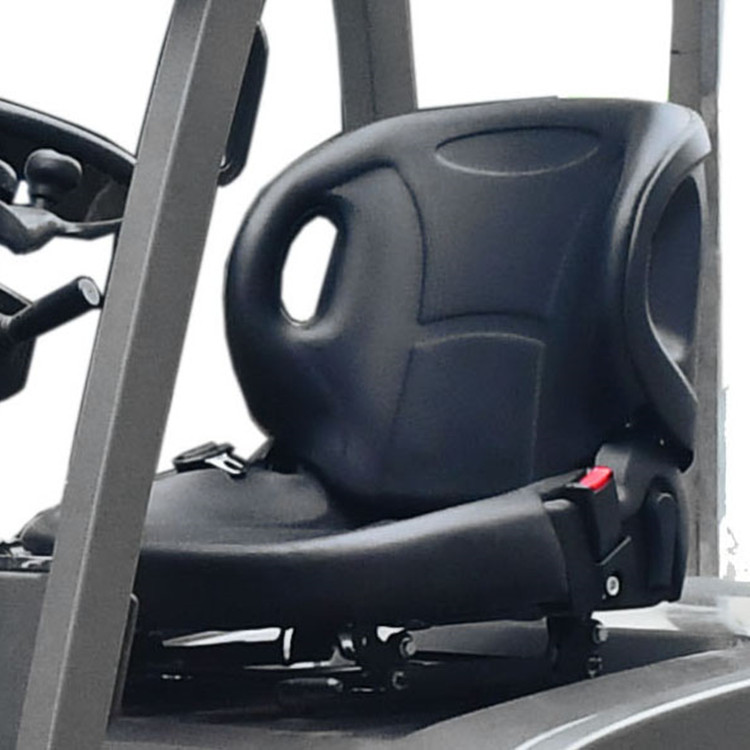

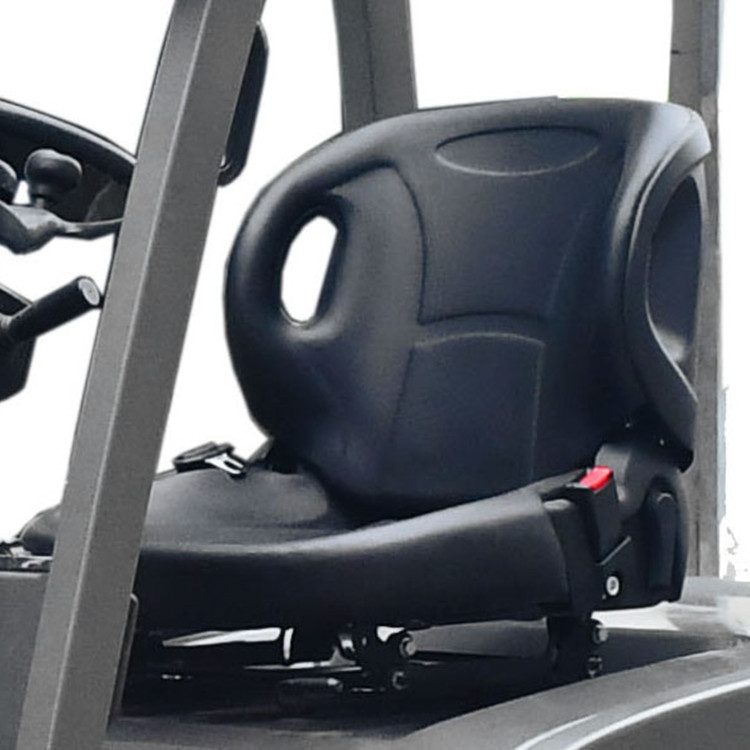

| Seat height(h7) | mm | 1070 | 1100 | |||||
| Turning radius(Wa) | mm | 2100 | 2250 | |||||
| Internal radius | mm | 100 | ||||||
| Aisle width of pallet
1000*1200 crossway |
mm | 3800 | 4200 | |||||
| Performance | Travel speed
(laden/unladen) |
Km/h | 12.0/14 | 10.8/10.5 | 11.0/11.0 | |||
| lifting speed
(laden/unladen) |
mm/h | 280/450 | 310/380 | |||||
| Lowering speed
(laden/unladen) |
mm/h | 450/400 | ||||||
| Max. gradeability
(laden/unladen) |
％ | 10/15 | ||||||
| Drive | Travel motor | / | XYQ-11-3EH | XYQ-12-1EH | ||||
| Travel motor power | Kw | 11 | 12 | 11 | ||||
| Hydraulic motor | / | XYQD-10-2CH | XYQD-14-2H | XYQD-12-2H | ||||
| Hydraulic motor power | Kw | 10 | 14 | |||||

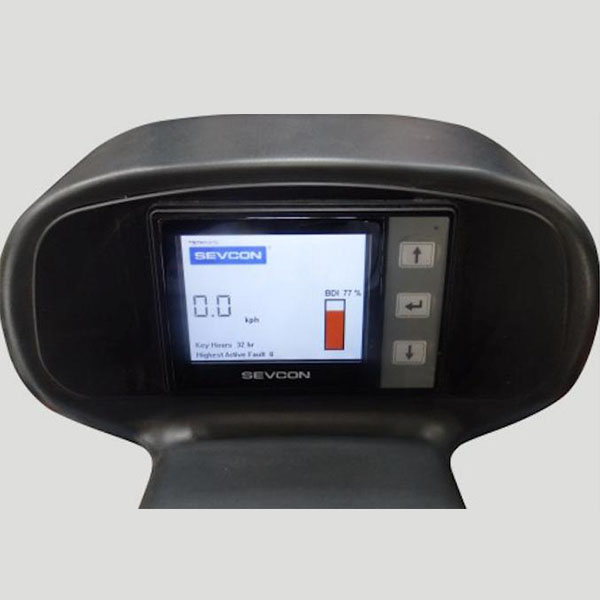

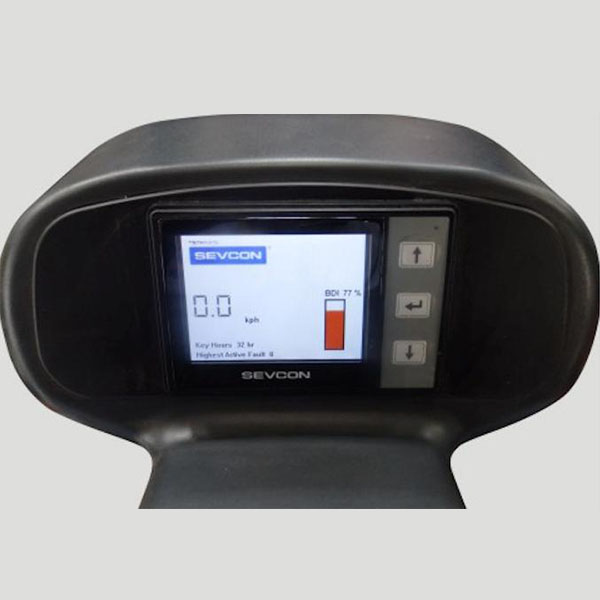

| Controller | / | UK SEVCON | ||||||
| Turning control | / | Hydraulic | ||||||
| Travel control | / | MOSFET | ||||||
| Lifting control | / | MOSFET | ||||||
| Oil tank | L | 45 | 40 | |||||

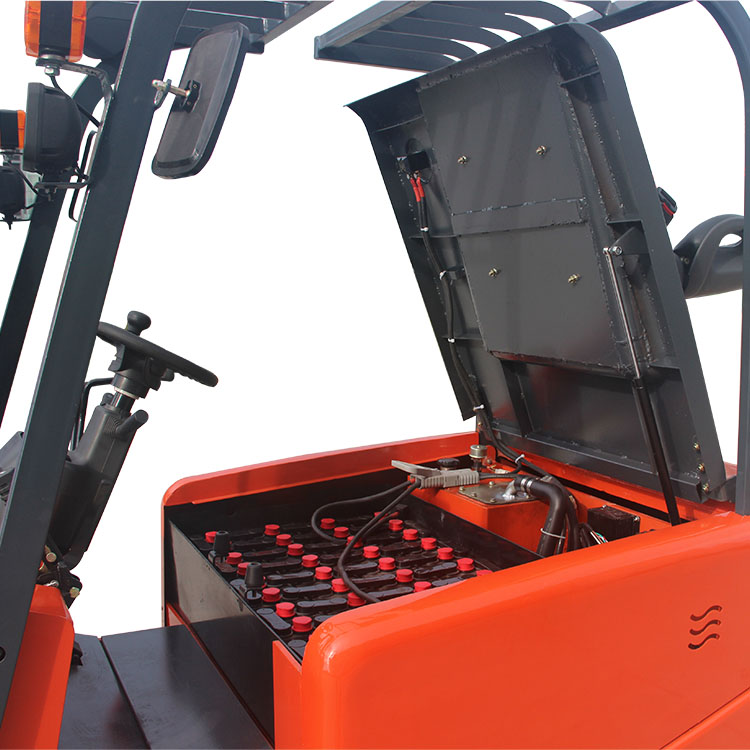

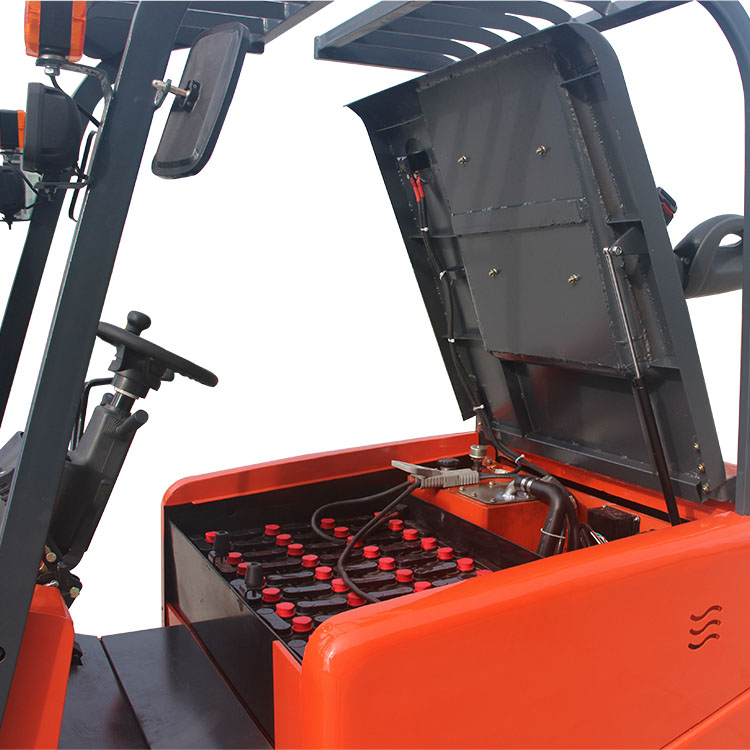

| Battery | battery | / | 48V-
600Ah |
48V-700Ah | 80V-500Ah | 80V-600Ah | ||
| Battery weight | kg | 900 | 1030 | 1380 | 1580 | |||
| Battery dimension(L*W*H) | mm | 1030*500*760 | 1115*655*760 | |||||
| Others | Stopping braking | / | Manual/mechanical | |||||
| Service braking | / | Feet/hydraulic | ||||||
| Operation pressure | kPa | 175 | ||||||
| Noise level (7.5m) | dB(A) | 70 | ||||||
