Semi-electric Pallet Truck

Load capacity: 1500kg
Lifting height: 200mm
Vehicle type: walking
Control: Handle/Manual travel, Electric lift

Consult Online Leave a Message

WhatsApp:+8615517552681

Email:[email protected]

Description Advantage Parameters Parts Details

Request A Quote

Product Description

Semi-electric pallet truck is an automatic lift truck. It reduces the manpower when loading and unloading goods in factories, supermarkets and ports, improves work efficiency, and is the simplest and most effective handling tool.

Product Advantage

◆Emergency reverse button.

◆Easy maintenance.

◆LED battery power indicator.

◆High-efficiency lithium battery, quick charging, light weight, easy replacement.

◆Integral design of key switch and emergency stop switch.

◆UK import controller, high quality motor, wearable mute PU drive wheel.

◆Spoon fork design can apply to double-deck pallet.

◆Efficient and convenient integral design of hydraulic pump.

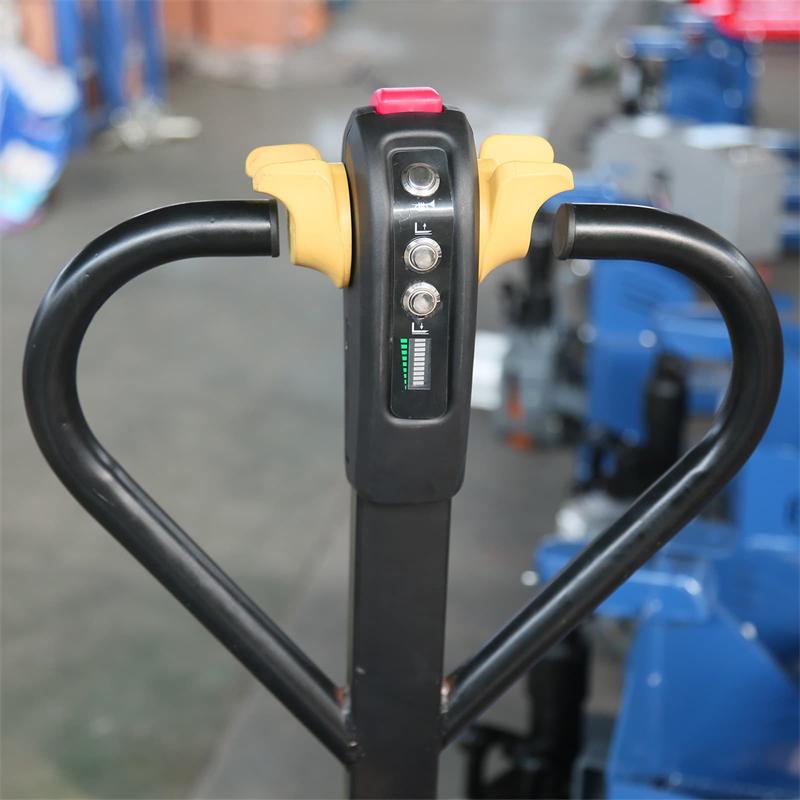

◆Newly upgraded smart handle.

Product Parameters

Model	EPT15MH
Capacity (Kg)	1500
Load center distance	600
Vehicle type	walking
Max. fork height(mm)	185/195
Min. fork height(mm)	80
Lifting height(mm)	110
Fork length(mm)	1150/1220
Single fork width(mm)	160mm
Width overall forks(mm)	550/685
Fork wheel-tandem(mm)	80*70
Steering wheel(mm)	180*50
Maximum full load speed (Km/h)	4
Maximum speed under no load (Km/h)	4.5
Maximum grade ability(lade/unlade)	3%/20%
Minimum turning radius(mm)	1320/1390
Walking motor(w)	450
Lithium battery capacity (AH/24V)	20
Controller	PG
Self weight (Kg)	130
